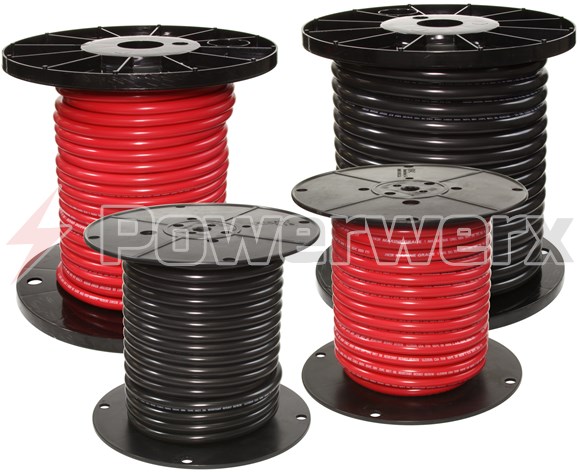

Ancor 115530 Tinned Battery Cable (Gauge: 1, Length: 300 ft., Color: Red)

Ancor Marine Grade wire products are the longest lasting and most rugged available. Resistant to salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Ultra-flexible (Type 3) tinned copper stranding provides maximum protection. Read Full Description

$1065.19

Qty:

Availability: In Stock

SKU: 115530

GTIN: 091887101331

Wire Gauge (AWG):1

Length:300 ft.

Color:Red

Be the first to review this product

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. Stays flexible even in extreme cold (-40°C). Resistant to salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra-flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

Conductor: Highest quality ultra-flexible (Type 3) tinned copper stranding

Insulation: Premium-grade, color-coded vinyl

Temperature Range: -40°C to +105°C (75°C wet)

Compliances: Exceeds UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards, RoHS Compliant.

Applications: Internal wiring of electrical and electronic equipment. Internal wiring of panels and meters. Point-to-point wiring.

Voltage Rating: 600 VAC

Gauge (AWG)	Number of Strands	Gauge of Strands (AWG)	Insulation Thickness		Finished Wire Diameter		Nom. Weight
			Inch	mm	Inch	mm	LBS./1000 ft.	KG/Km
			6	266	30	.06	1.52	.324	8.23	144	214.29
4	420	30	.06	1.52	.386	9.80	168	249.28
2	665	30	.06	1.52	.437	11.10	251	372.44
1	836	30	.08	2.03	.518	13.16	333	494.11
1/0	1064	30	.08	2.03	.563	14.30	403	597.98
2/0	1330	30	.08	2.03	.615	15.62	500	741.91
3/0	1672	30	.08	2.03	.67	17.02	614	911.06
4/0	2109	30	.08	2.03	.74	18.80	765	1135.12
