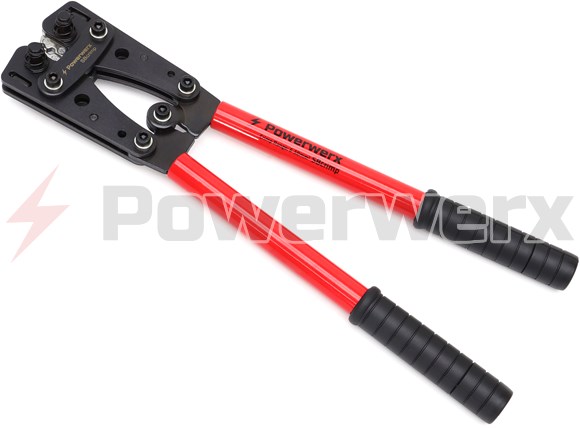

Picture of Powerwerx Handheld Hex Crimper for Large SB Series and Powerpole Connectors
Powerwerx Handheld Hex Crimper for Large SB Series and Powerpole Connectors
  • $89.99
  • In Stock
  • SKU: SBcrimp

Powerwerx Handheld Hex Crimper for Large SB Series and Powerpole Connectors

Crimp SB50, SB120, SB175 and Powerpole PP75, PP180 large contacts in a single tool. Rotating hexagonal dies are always in tool. For light and medium duty applications. Comfortable insulated grips. Safe, small lightweight and easy to handle. 15" length. Read Full Description
$89.99
Availability: In Stock
SKU: SBcrimp

Crimp SB® Series SB50, SB120, SB175 and Powerpole® PP75, PP180 large contacts in a single tool. Rotating hexagonal dies are always in tool. For light and medium duty applications. Comfortable insulated grips. Safe, small lightweight and easy to handle. 15" overall length.

The Handheld Hex Crimping tool is not endorsed by Anderson Power Products®. Only official tooling solutions recommended by APP may be acceptable for safety agency approvals such as UL, CSA and TUV. Official tooling solutions are available for purchase at a higher price.

Introduction
This user manual covers the proper use of the Powerwerx SBcrimp crimping tool. Please read the information contained herein carefully before using the tool.

Operating Procedure

  • Using the Chart on the next page, determine the proper die position for the style of connector.
  • To select the correct die set, push in the die pivot pins from the spring side and rotate each die to the proper position.
  • Strip the cable insulation enough so that the bare conductor seats fully in the connector.
  • Open the tool and position the connector in the crimp die set.
  • Insert the bare wire into the connector.
  • Fully close the die set for a proper crimp.
  • Tip: Crimp each connector twice for maximum strength and conductivity. Always crimp near the end of the barrel first.

Maintenance
The Powerwerx SBcrimp is factory lubricated with a low friction, high temperature synthetic lubricant. Additional lubrication may be required for very high usage tools. Simply add two or three drops of #30 weight oil to each pivot point. Circulate the oil by opening and closing the tool several times.

Specifications
Operation:

  • Anderson Power SB50/PP75, SB120/PP120, SB175/PP180
  • Crimping Scope: 6-50 mm2
  • Material: Copper/Aluminum

Physical dimensions and materials:

  • Anderson Power SB50/PP75, SB120/PP120, SB175/PP180
  • Weight: 2.9 lbs. (1.3 kg)
  • Overall Length: 16 in. (406 mm)

Anderson Power Products SBcrimp Cross Reference Chart

Anderson SeriesAnderson Part NoWire GaugeSBcrimp Die Position
PP75/SB50590066
PP75/SB50595286
PP75/SB505915106
SB120/PP12013192First with 4, second with 5
SB120/PP1201319G44First with 4, second with 5
SB120/PP1201319G66First with 4, second with 5
SB175/PP18013821/0 First with 2, second with 3
SB175/PP18013471First with 2, second with 3
SB175/PP18013832First with 2, second with 3
SB175/PP18013844First with 2, second with 3

Warranty
Powerwerx support policy is simple; we want you to be happy! If you have a problem, please feel free to contact us and we will do our best to get you up and running as soon as possible.

The Powerwerx SBcrimp has a one-year limited warranty. We will repair or replace your SBcrimp if you encounter any problems within one year of purchase. We reserve the right to charge a reasonable fee for repairing units with user-inflicted damage. It is your responsibility to ship the defective unit back to Powerwerx. We will pay for shipping the replacement to you within the warrantee period.

Powerpole® and SB® are registered trademarks of Anderson Power Products, Inc.
