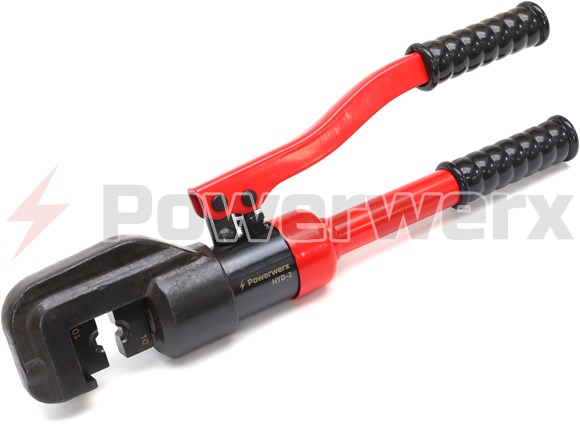

Hydraulic Crimping Tool for Large SB and Powerpole Contacts

The ideal Hex crimping tool for Anderson Power SB® series contacts and heavy duty battery lugs. Features interchangeable dies for various size contacts providing a large range of crimps. Quick change die design allows for fast and easy size changes. Read Full Description

$149.99

Qty:

Availability: In Stock

SKU: HYD-2

GTIN: 840128919880

Be the first to review this product

The Hydraulic Crimping tool is not endorsed by Anderson Power Products®. Only official tooling solutions recommended by APP may be acceptable for safety agency approvals such as UL, CSA and TUV. Official tooling solutions are available for purchase at a higher price.

Operation:

Crimping Scope: 10 - 120mm (6 - 4/0 gauge)
Material: Copper/Aluminum
Max Working Pressure: 12T
Max Working Travel: 14mm (0.47in)

Physical dimensions and materials:

Weight: 3.2kg (7.1 lbs)
Overall Dimensions: 430mm x 120mm x 34mm (16.93in x 4.72in x 2.76 in)

Included Hexagonal Dies:

10, 16, 25, 35, 50, 70, 95, 120mm

Anderson Power Products HYD-2 Cross Reference Chart

Anderson Series	Anderson Part No	Wire Gauge	HYD-2 Tool Die Number
PP75/SB50	5900	6	10mm
PP75/SB50	5952	8	10mm
PP75/SB50	5915	10	10mm
SB120/PP120	1319	2	35mm
SB120/PP120	1319G4	4	25mm
SB120/PP120	1319G6	6	35mm
SB175/PP180	1382	1/0	35mm
SB175/PP180	1347	1	35mm
SB175/PP180	1383	2	35mm
SB175/PP180	1384	4	35mm
SB175/PP180	1348	6	16mm
SB350	917	1/0	35mm
SB350	907	2/0	70mm
SB350	916	3/0	70mm
SB350	908	4/0	70mm

Powerpole® and SB® are registered trademarks of Anderson Power Products, Inc.
