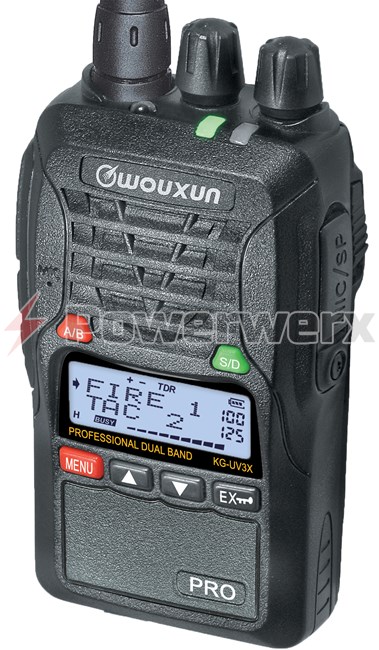

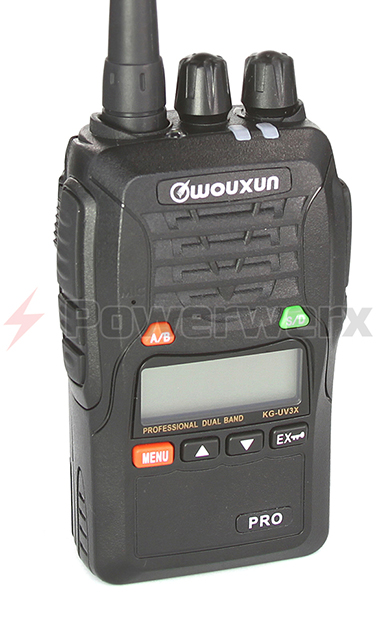

Picture of Wouxun KG-UV3X Pro Dual Band VHF/UHF 125 Channel Handheld Commercial Radio
Wouxun KG-UV3X Pro Dual Band VHF/UHF 125 Channel Handheld Commercial Radio
  • $134.99
  • Out of stock
  • SKU: KG-UV3X

Wouxun KG-UV3X Pro Dual Band VHF/UHF 125 Channel Handheld Commercial Radio

Dual band VHF/UHF, 125 channel commercial transceiver. Freq. range: 136-174, 375-512 MHz. Includes the 2.5 step for FCC narrowband compliance. Upgraded 1700mAH Li-ion battery pack. Standard SMA antenna connector. Part 90 certified for commercial use. Read Full Description
Availability: Out of stock
GTIN: 840128905579

The KG-UV3X Pro is a compact, high-performance dual band handheld commercial transceiver providing up to 5 Watts of RF power on VHF and 4 Watts on UHF, along with high audio output (500 mW).

Ideal for Fire, Police, FEMA, CAP, security patrols, business communications, schools, construction crews, universities, and other organizations that have FCC licensed frequencies. 2.5 step for FCC narrowband compliance. FCC Part 90 certified.

Frequency Range of 136-174, 375-512 MHz, FM: 76-108 MHz (RX). 136-174, 406-512 (TX).

The KG-UV3X Pro features a long operating time (about 16 hours), thanks to the standard extended life 1700 mAh high capacity Li-ion battery pack.

Commercial radios are shipped keyboard locked per FCC 47CFR90.203 and require software programming via RT Systems Advanced Radio Programming software (RPS-3xPRO-USB) or the optional low cost USB programming cable.

KG-UV3X Pro Model Features

The newest model to the Wouxun lineup features an exclusive wide receive range coverage (136-174 MHz & 375-512 MHz), rapid desk charger, the optional 1700 mAh Li-ion battery pack standard (a $28 value) and additional features including:

  • Exclusive wide receive range (136-174 MHz & 375-512 MHz)New!
  • 2.5 step for FCC narrowband compliance New!
  • 125 memory channels
  • Standard SMA antenna connector
  • Channel selector knob availability can be configured on or off when front keys are locked
  • The single/dual band key can be software programmed on/off

FCC Approval

The KG-UV3X Pro is Part 90 certified for commercial use. CE & FCC Part 90 certified, FCC ID: WVTWOUXUN07

Civil Air Patrol (CAP) Approval

The KG-UV3X Pro and the KG-UV6X are TIA/EIA 603C compliant and listed under Commercial (Narrowband Capable) Equipment Report

Powerwerx Warranty Policy

  • 12 month limited warranty on the radio against defects in materials and workmanship
  • 6 month limited warranty on the included radio battery and battery charger against defects in materials and workmanship

Standard Accessories Included with Every Radio

  • Dual band radio
  • Dual band antenna (4 inch rubber duck type with standard SMA connector)
  • Extended life 1700 mAh high capacity li-ion battery pack (about 16 hours operating time)
  • Intelligent desktop 3 hour rapid charger
  • Desktop charger AC power cord
  • Belt clip
  • Wrist strap
  • English user manual


  • Dual band monitor (VHF/UHF, VHF/VHF, UHF/UHF)
  • Dual alpha numeric, backlit display with channel name edit
  • Selectable high/low power settings (VHF: 5W high/1W low) (UHF: 4W high/1W low)
  • Includes extended life 1700 mAh high capacity li-ion battery as standard
  • Includes intelligent desktop 3 hour rapid charger
  • Loud speaker audio output (500 mW)
  • Bright flashlight illumination function
  • Meets IP55 waterproof rating
  • English female voice prompts enable non-sighted operation (can be turned off)
  • 125 channels memories (shared), 18 FM memories
  • VOX Function
  • Digital FM radio (76-108MHz) with automatic tuning and storing, radio frequency display, 18 FM memories in 2 banks
  • Narrowband compliance (2.5 kHz)
  • Power on display: display test, then battery voltage, then 6-character customizable welcome message
  • Windows PC programmable with RT Systems Advanced Radio Programming software (RPS-3xPRO-USB) or optional low cost USB cable.
  • Radio to radio cloning with optional cable (SKU: WXCLN)
  • Same channel: VHF TX & UHF RX or UHF TX & VHF RX available
  • 105 groups DCS/50 groups CTCSS
  • 16-Key DTMF encoding
  • CTCSS encode/Decode (no decode delay)
  • Stopwatch function
  • SOS function
  • Low-voltage voice prompt
  • Busy channel lockout
  • Selectable transmit over timer (from 15 to 600 seconds)
  • Selectable step sizes of 2.5, 5, 6.25, 10, 12.5, 25 kHz
  • Multiple scan modes including priority scan
  • Keypad lock (auto or manual)
  • High contrast white backlit control keys
SpecificationsKG-UV3X Pro
Frequency Receive RangeVHF: 136-174 MHz
UHF: 375-512 MHz
FM: 76-108 MHz
Frequency Transmit RangeVHF: 136-174 MHz
UHF: 406-512 MHz
Memory Channels125 channels (shared)
Operating Voltage7.4 VDC
Operating Temperature-22°F to 140°F (-30°C to +60°C)
Dimensions (W x H x D)2.3 x 4.1 x 1.6 inches (58 x 105 x 40mm) (with 1700 mAh battery pack, without antenna)
Weight8.9 ounces (253 grams)
RF Carrier PowerVHF: 5W high/1W low, UHF: 4W high/1W low
Audio Output Power500mW maximum
Waterproof RatingMeets IP55 waterproof rating
Customer Reviews
4 years and still going By
Wouxum KG-UV3X; Awesome radio. I use mine for about 14 hours every weekend for Ski Patrol. it gets some rough treatment (squashed in my patrol pack against the back of the chair lift) in temps well below 20 to 10 degrees. I use the longer antenna that's available for about $20. and it reaches around the other side of the mountain with no problem. The glass broke so I put a piece of clear packing tape over the glass, two years ago.
The radio is also used for down hill mountain biking patrol in season as well.
Was this review helpful? Yes No (4/0)
Amazing radio By
I was first able to use this radio on our monthly radio drill this past week. This radio performed be on my expectations amazing reception, and clarity. Now I know why this product was selected to be the go to for our CERT radio network. The only this is that I wish there were a way to switch between the two channels on the mic.
Was this review helpful? Yes No (2/0)
To continue our earlier review; we just ordered 14 more KG-UV3X's to assign to each of our CERT Neighborhood Captains. Each neighborhood leader will have an assigned radio available at the earliest onset of a disaster. This is much more than a radio, it has become a necessary management tool with it's dual tuner, display and dual band.
With good communications we will succeed in doing the most good for the most people.
Was this review helpful? Yes No (8/0)
Community Emergency Response Team By
We just bought 3 KV-UV3X to supplement our 27 other Wouxun KG-UVA1X's.
The Display and dual tuner hit a home run.  Our neighborhood leaders can keep in touch with the EOC while monitoring their teams progress and safety during an event.
We live in a geographically diverse urban and rural environment that challenges even the ardent and experienced radio operators. These Wouxun radios have the range and clarity that we need.  Our field tests with it have been outstanding.
Make sure to get the cable and software as it is different from the KG-UVA1X.
Thanks Powerwerx for the service and advice.  You will hear from us soon about our next RF project.
Was this review helpful? Yes No (7/0)
The KG-UV3X is the Best Radio of WOUXUN By
I just brought one KG-UV3X from POWERWERX, I'm 100% satisfied with it, PERFECT AUDIO QUALITY RX & TX , EXCELLET SENSITIVITY ( it gets even better with the long KG-UV6D antenna).

About the software, it is EXCELLENT, it very easy to program, COMPLY WITH THE FCC RULES and EXCELLENT COSTUMER SERVICE to HELP YOU to install it!
Was this review helpful? Yes No (6/1)
