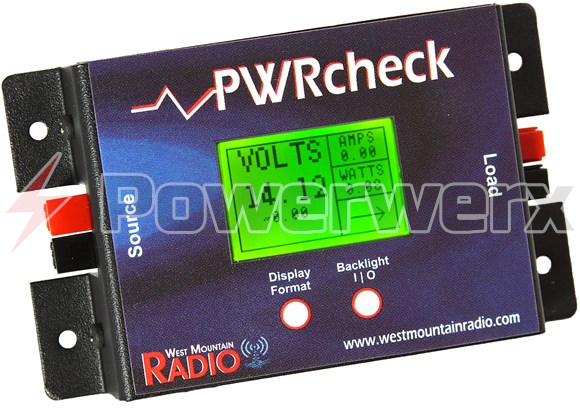

Picture of PWRcheck, DC power analyzer, watt meter, with logging plus software via USB
PWRcheck, DC power analyzer, watt meter, with logging plus software via USB
  • $144.97
  • In Stock
  • SKU: PWRcheck

PWRcheck, DC power analyzer, watt meter, with logging plus software via USB

An integrated DC analyzer measures volts, amps, watts, amp-hours and more. The backlit graphical LCD features 13 display modes. Hi-side monitoring is ideal for vehicle use. PC software via USB supports real-time monitoring, data download and charting. Read Full Description
$144.97
$184.99
Availability: In Stock
SKU: PWRcheck

What is PWRcheck?

PWRcheck is an integrated DC power analyzer, watt meter and electricity monitor, measuring 0V to 60V DC at up to 40A. The backlit graphics LCD features seven display modes including voltage, amperage, wattage, amp-hours and voltage quality. Alarms can be set to flash the display for programmable limits for over/under voltage and over current, wattage and amp-hours. High side monitoring simplifies installation making it suitable for vehicle use. Source and load connections utilize 45A Powerpole connectors. Non-volatile memory stores over 174,000 data points (over 4 months of data @ 1 point/minute). Included PC software supports real-time monitoring, data download and charting.

Who is PWRcheck for?

PWRcheck enables amateur radio enthusiasts, emergency service providers and site operators to assess load requirements and monitor the status of health of their DC power supply systems.

Hardware Capabilities

  • Handles 13 display modes including voltage, current, wattage and amp-hours
  • Measures 0V to 60V (Less than 8V requires USB power to PWRcheck), 40A continuous load
  • Accurate to within +/- 10mV, +/- 10mA
  • Resolution - 10mV, 10mA
  • High side monitoring does not require breaking power supply ground or return path, ideal for vehicle use
  • Backlit graphics LCD displays data in digital, analog and bar graph formats
  • Monitor back up battery with programmable gas gauge
  • Non-volatile memory stores more than 174,000 data points (over 4 months of data @ 1 point/minute) without power
  • USB computer interface for configuration and data download
  • Programmable alarm conditions for overcurrent, over/under voltage, amp-hours
  • 40A Powerpole connectors
  • Dimensions 4-5/8" L x 2-3/4" W x 1" H

Software Capabilities

  • Easily program every aspect of PWRcheck operation such as data logging rate, display formats, alarm conditions
  • Displays current, voltage, wattage and amp-hours in real time
  • Integrated charting software automatically collects and displays data
  • Downloads stored data for later analysis
  • Exports to Excel

Package Includes

  • PWRcheck - integrated DC power analyzer, watt meter and electricity monitor
  • PWRcheck software
  • USB cable
  • User Manual

Computer System Requirements

  • At least an 800 X 600 graphics card and display monitor
  • Windows XP, Vista: 32 or 64 bit, Windows 7: 32 or 64 bit
  • An available USB port
Customer Reviews
Inconsistent firmware By
This unit used to have issues with the usb connection, it would corrupt the lcd display and give very jittery readings after operating it with
the usb port.
Was this review helpful? Yes No (2/2)
Very nice By
Running an Astron Supply and the meters are lacking. So really need a better meter system. This fits the bill perfectly. I wish someone would come up with a better shelf mount type setup as I had to modify this to sit on shelf as I wanted. However its much better than the last inline LCD unit I had.

I would like to see more  refined software. Something simply yet small would be great.
Was this review helpful? Yes No (1/0)
It seems to be good product By
Nothing to say it a good product
Was this review helpful? Yes No (0/7)
