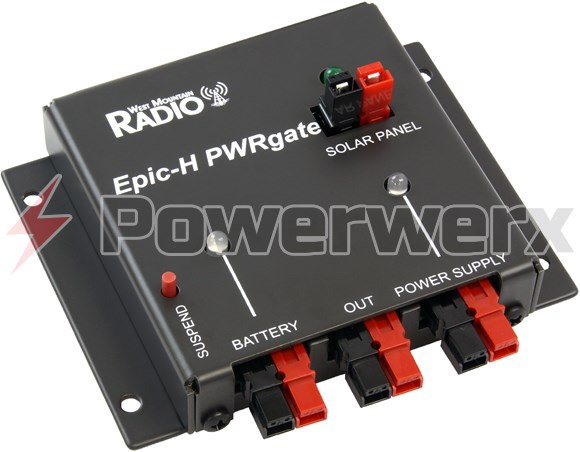

Picture of West Mountain Radio Epic PWRgate Horizontal 12V Backup Power System
West Mountain Radio Epic PWRgate Horizontal 12V Backup Power System
  • $189.99
  • In Stock
  • SKU: Epic-H-PWRgate

West Mountain Radio Epic PWRgate Horizontal 12V Backup Power System

West Mountain Radio's 3rd generation power gate product. A true solid state 40A backup power system. Connected loads will instantly switch to battery during an outage or power supply failure. Charges Gel, AGM and Lithium battery types. Optional direct solar input for battery charging. New Horizontal version allows for better cable management. Read Full Description
Availability: In Stock
SKU: Epic-H-PWRgate
  • Epic PWRgate is a 12 volt backup power system rated at 40 amperes continuous from either a Power Supply or a Battery.
  • Connected equipment will instantly switch to battery during a power blackout or power supply failure.
  • Low loss PWRgate provides forward voltage drop of only 0.05 volts.
  • USB port access to monitor system or to change charge parameters.
  • Program for specific battery types.
  • Supports smart charging of either Lead Acid or Li-Ion battery charging up to 10A.
  • Optional direct solar panel input for battery charging (all chemistries). Solar panel VOC must be <= 30V.
  • Can be programmed for vehicle use to suspend charging when the alternator is off.
  • Complete LED status indicators.
  • Battery charge suspend button to eliminate current draw or charger noise for 30 minutes.
  • Optional temperature probe to control charging based on battery temperature.
  • Solid, durable construction in an aluminum case. Includes mounting holes for convenient and secure use in mobile units.
  • Uses Anderson Powerpole connectors.
  • Includes: Epic PWRgate Unit, USB-micro Cable, (4) Retention Clips, Owners Manual, Reference Card
  • Maximum Voltage: PS 16V / Solar 30V
  • Maximum Current: 40 Amperes
  • Voltage Drop: 0.05VDC
  • Connectors: Anderson Powerpole, 40A
  • Connector Configuration: Horizontal Mounted (allows for better cable management)
  • Size: 4.5 x 3.375 x 1.25 in
  • Weight: 0.35 lbs
  • Mounting Holes: Four - 0.175 d, #8 hardware
 Lead AcidAGMLiFePO4
Charge Voltage13.8514.414.6
Charge Current1, 5 or 10 amps1, 5, 10 amps1, 5, 10 amps
Stop Charge Current0.5V0.25V0.25V
Trickle Charge0.15V0.15V0V
Recharge Voltage12.2V12.2V12.8V
Max Charge Time25 hrs25 hrs25 hrs
Retry Time4 hrs4 hrs4 hrs
ChemistryLead AcidAGMLiFePO4
Min PS Volts13.0V13.0V13.0V
Lowest Temp (F)0035
Highest Temp (F)120120110
Use Temp for ChargeYesYesNo
Customer Reviews
Very useful unit By
I originally purchased the Epic PWR gate to use on my former vehicle as a means of charging an external battery and running my dual band mobile radio.  The addition of the solar panel input port allowed for connecting a foldable array when we were stationary to keep the auxiliary battery topped off.  The intent in this case was to run my mobile rig as an APRS repeater to extend the range of my hand-held radio while hiking and get my signal out of the valleys.

The programmable voltage cut-off and charging logic are great features that make it possible to set-up the power gate for either Li or Pb batteries and negate the need for an additional charger.

You can assemble the sub-components needed to execute the same functions (battery cut-off, vehicle power relay, external charge controller and transfer switch), but, having these elements built into one integrated unit makes wiring and setup far easier and the install cleaner.  While not inexpensive, the execution is well done and the total cost of the separate components needed to perform the same functions as the power gate would equal or exceed its cost.  I believe the value for the money is reasonable and I have had good experience with West Mountain Radio products in the past.

The only negative is that the power pole ports are not overly robust so I have integrated strain relief to reduce the risk of breaking the connectors off of the board.
Was this review helpful? Yes No (5/0)
Perfect for my use By
I’m running a Miady 16ah lifepo4 inside a PWRbox along with this controller.  I added another panelpole to the box (for inputs) so that I can charge the battery using my powersupply or solar panel.

I added the low temp probe and had to program a few parameters via usb.  The auto switching works like a champ.  Low temp cutoff works perfectly as well.

This is my primary shack power solution that is also portable.  Good stuff.

A few cons is the solar charge is limited to 30v and the powerpole connections seem to strain against 12g wiring bends when closing my box.  Hopefully the latter is a non-issue.
Was this review helpful? Yes No (6/0)
