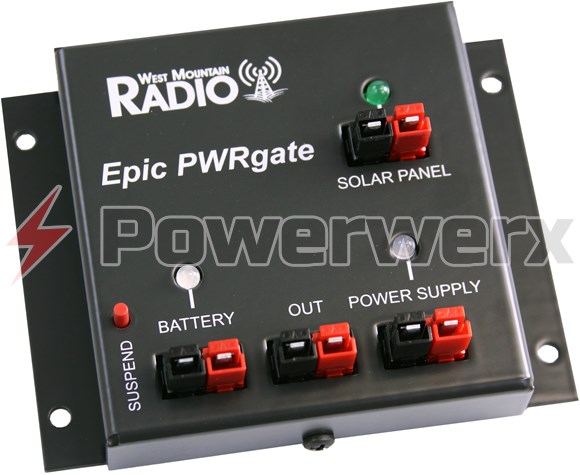

West Mountain Radio Epic PWRgate 12V Backup Power System

West Mountain Radio's 3rd generation power gate product. A true solid state 40A backup power system. Connected loads will instantly switch to battery during an outage or power supply failure. Charges Gel, AGM and Lithium battery types. Optional direct solar input for battery charging. Read Full Description

$189.99

Availability: Out of stock

SKU: EpicPWRgate

Read All Reviews (2) | Add your review

Epic PWRgate is a 12 volt backup power system rated at 40 amperes continuous from either a Power Supply or a Battery.

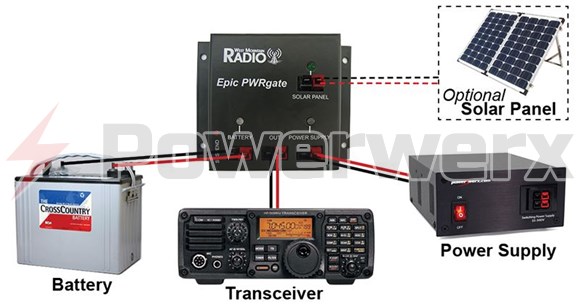

Connected equipment will instantly switch to battery during a power blackout or power supply failure.
Low loss PWRgate provides forward voltage drop of only 0.05 volts.
USB port access to monitor system or to change charge parameters.
Program for specific battery types.
Supports smart charging of either Lead Acid or Li-Ion battery charging up to 10A.
Optional direct solar panel input for battery charging (all chemistries). Solar panel VOC must be <= 30V.
Can be programmed for vehicle use to suspend charging when the alternator is off.
Complete LED status indicators.
Battery charge suspend button to eliminate current draw or charger noise for 30 minutes.
Optional temperature probe to control charging based on battery temperature.
Solid, durable construction in an aluminum case. Includes mounting holes for convenient and secure use in mobile units.
Uses Anderson Powerpole connectors.
Includes: Epic PWRgate Unit, USB-micro Cable, (4) Retention Clips, Owners Manual, Reference Card
Maximum Voltage: PS 16V / Solar 30V
Maximum Current: 40 Amperes
Voltage Drop: 0.05VDC
Connectors: Anderson Powerpole, 40A
Connector Configuration: Top Mounted
Size: 4.5 x 3.375 x 1.25 in
Weight: 0.35 lbs
Mounting Holes: Four - 0.175 d, #8 hardware

	Lead Acid	AGM	LiFePO4
Charge Voltage	13.85	14.4	14.6
Charge Current	1, 5 or 10 amps	1, 5, 10 amps	1, 5, 10 amps
Stop Charge Current	0.5V	0.25V	0.25V
Trickle Charge	0.15V	0.15V	0V
Recharge Voltage	12.2V	12.2V	12.8V
Max Charge Time	25 hrs	25 hrs	25 hrs
Retry Time	4 hrs	4 hrs	4 hrs
Chemistry	Lead Acid	AGM	LiFePO4
Min PS Volts	13.0V	13.0V	13.0V
Lowest Temp (F)	0	0	35
Highest Temp (F)	120	120	110
Use Temp for Charge	Yes	Yes	No

Downloads

Epic PWRgate Owner's Manual (422KB)

Customer Reviews

Excellent Product By Guest

A little expensive but, keeps any battery chemistry happy and at the exact right charge voltage. I really like the information that the LEDs provide. One glance and you know exactly what mode/state of charge the unit is in. Worth every penny.

Was this review helpful? Yes No (1/0)

epic powergate By Guest

very good but most expensive for 40 amps, i hope they built a new 80 amps for same price. so the epic powergate make very good job in my shack and nothing bad for this except the price.

Was this review helpful? Yes No (32/5)
