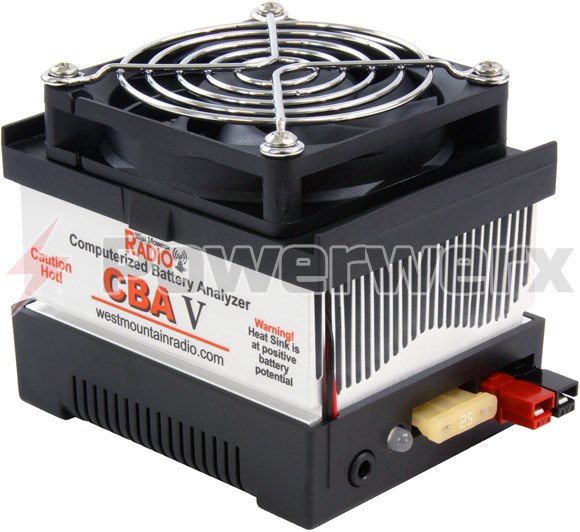

Picture of West Mountain Radio CBA V 5 Pro Computerized Battery Analyzer
West Mountain Radio CBA V 5 Pro Computerized Battery Analyzer
  • $229.99
  • In stock
  • SKU: CBAV-Pro

West Mountain Radio CBA V 5 Pro Computerized Battery Analyzer

Same as CBAV plus Calibration data and 1 year commercial use warranty. Scientifically Analyze Battery Performance. Test any type of battery. Test quickly at real world load conditions. Results are graphically displayed with easy to use software Read Full Description
$229.99
Availability: In stock
SKU: CBAV-Pro

Same as CBAV plus Calibration data and 1 year commercial use warranty.

* Improvement/Enhancement on CBA V Pro

Capabilities

Scientifically Analyze Battery Performance

  • True constant current battery capacity test with results graphically displayed, constant power testing supported with Extended software upgrade
  • Discharge current is software and electronically regulated using a solid state switch and fan cooled electronic load
  • Test any type of battery; coin cell to automotive or larger. Presets for NiCad, NiMH, Lead Acid, Li Ion, Li Poly, Alkaline, Carbon Zinc, Mercury etc.
  • Solar cell profiling capability
  • Lower current testing capabilities - down to 10 mA
  • Multiple discharge tests can use Watts as a parameter (CBA II/CBA III only allows current)

Perform Fast, High Power Testing

  • Tests quickly at real world load conditions, up to 150 watts or 40 amps maximum, whichever is  higher
  • High voltage testing at up to 55 volts (CBA II/CBA III is only 48V); the equivalent of 1 to 38 NiCad or NiMh cells
  • Perform power profile test (increase current at user's rate to see how voltage/power responds), useful for testing max power output of a power supply or solar cell
  • Optional 500 watt and 1000 watt amplifiers

Accuracy and Precision for Demanding Applications

  • Remote voltage sensing for higher testing accuracy *
  • On-board computer performs accurate measurement with 12 bit effective resolution. Auto ranging for 2 current ranges and three voltages
  • Each CBA is individually calibrated with a computerized calibration system
  • Calibration certification data provided with CBA V Pro
  • SDK for developing your own scripts or programming
  • TTL UART port that can be controlled by an Arduino, Raspberry PI, or other embedded system with a TTL serial port

Built-in Safety Features Provide Superior Battery Protection

  • Improved cooling system allowing higher continuous loads for testing *
  • Additional LED status indications *
  • Fuse blown LED and easy to change fuses *
  • Fail safe: automatic protection of temperature, current and power
  • Safety watchdog stops a discharge in the event of a computer crash
  • Discharge test current user selectable from 0 to 40 Amps
  • Timed discharge test (stop discharge once certain Ah has been reached)
  • Dynamic test (alter test current using panel on the side of the software, without having to stop and start a new test)
  • Automatic voltage shut off at end of test using a software recommended or user selected safe discharge voltage
  • Automatic over-temperature shut off at end of test at using a software recommended or user selected maximum temperature with optional external magnetic temperature sensor

Free Standard Software for Data Analysis

  • User selected battery cell chemistry, number of cells and test current
  • Software recommends safe tests based on user supplied battery information
  • Automatic graph setup and scaling
  • Measures and displays voltage, current, amp-hrs, and watts
  • User can set the criteria for "Easy-Go/No-Go" testing
  • Easy overlay comparisons of multiple graphs may be displayed saved and recalled
  • Save, display and print battery test graphs and battery labels
  • Plug and Play high speed USB interface, with easy to use and intuitive Windows® software        supplied on CD ROM
  • Manage individual tests on any number of CBA V units connected to the same PC
  • Software has no limit on number of CBA Vs that can be attached (CBA II/CBA III required multiple unit license)

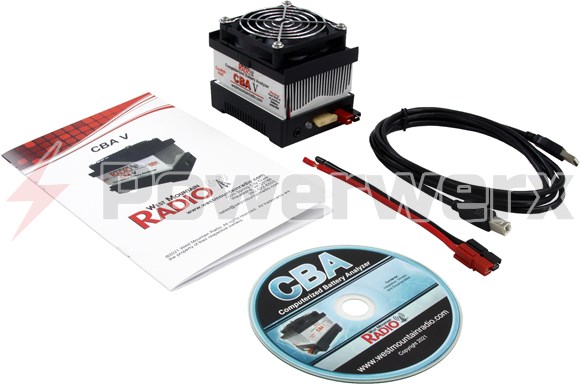

Includes

  • CBA V Pro unit
  • 6 inch pigtail adapter
  • Standard version CBA software CD-ROM
  • Calibration Data
  • 6 ft USB Cable
  • 25 amp fuse
  • Remote sensing cable
  • User Manual

Specifications

  • Maximum continuous discharge rate: 150W
  • Short term maximum discharge: 200W
  • Discharge current range: 0.01A to 40A
  • 0.01-1.5 amp accuracy: typically better than +/-25ma
  • 1.5-40 amp accuracy: typically better than +/-2%
  • Voltage Accuracy At CBA V connector: +/-1%
  • Voltage Accuracy with Remote sense cable: +/-1%
  • Voltage range for battery under test : CBA V & CBA V Pro: 1V to 57V
  • Sample rate with Standard software: 1 second
  • Sample rate with Extended software: 50ms to 10 minutes
  • Residual current drain while battery is connected and not testing Rough estimate: Current in ma = 0.27*Voltage - 0.25
  • Maximum Ambient temperature for a full load: 75°F
  • Maximum Heat Sink temperature for a full load: 140°F
  • Maximum Internal temperature for a full load: 205°F
  • PC Windows 32 or 64 bit OS
  • 4 GB minimum, 8 GB or more recomended
  • Dimensions: 3.5" H x 2.8" W x 3.6" D
  • Weight: 16oz.
