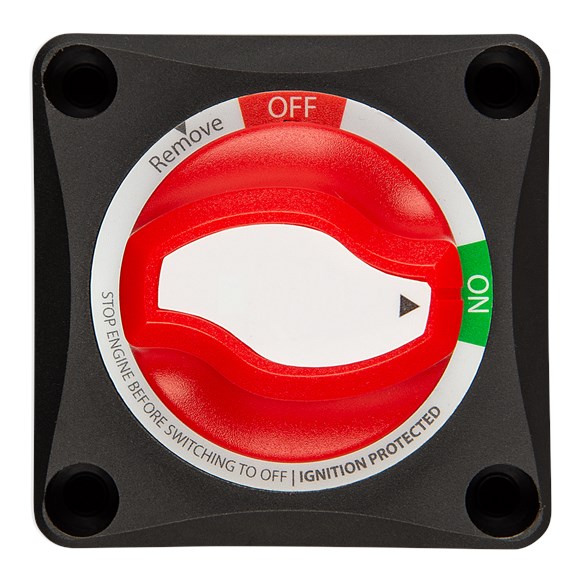

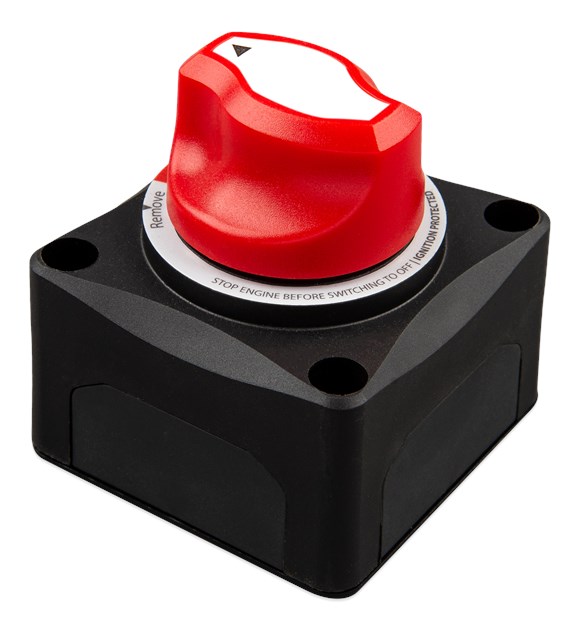

Victron Energy VBS127010010 Battery switch ON/OFF 275A

The Battery Switch can be used to isolate a battery from DC loads and/or DC charge sources. It is used to preserve battery charge in case a system is unattended, for system maintenance or in an emergency. It can also be used to parallel connect the house battery to the starter battery to supplement a flat starter battery or a flat house battery in case of an emergency.

Installation

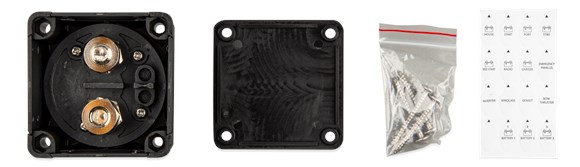

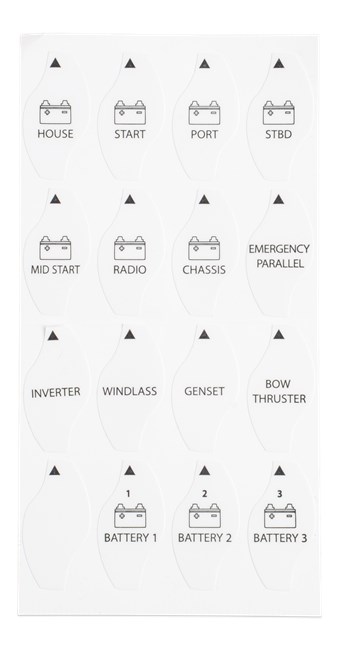

The Battery Switch can be either surface or panel mounted, providing flexibility during install. It features 4 easily removable side panels for cable access. It ships with 16 different label stickers, for customization of the Battery Switch.

Safety

The knob is removable for isolation or safety purposes. The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.

Specifications:

Max. Continuous Current: 275 A

One Minute Rating: 455 A

Cranking Rating: 1250 A

Voltage Rating: 48 V

Terminal Material: Tin-plated copper

Hex Nut Material: Tin-plated copper

Terminal Diameter: 3/8 inch  (9.53 mm)

Recommended Torque: 70 lbf/inch (8 N/m)

Base Material: Glass fiber reinforced nylon

Weight: 0.4 lb (0.2 kg)

Dimensions (l x w x h): 2.7 x 3.0 x 2.7 inch (69.5 x 76.3 x 69.5 mm)

Mounting: Surface or rear panel mount

Ignition Protected: ISO8846 / SAE J1171
