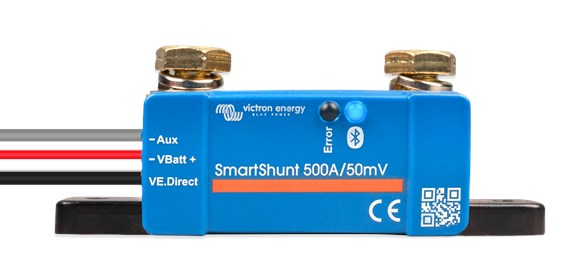

Victron Energy SHU065150050 SmartShunt 500A/50mV IP65

The SmartShunt IP65 connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively, the SmartShunt IP65 can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The SmartShunt is equipped with Bluetooth, has a VE.Direct port and an auxiliary connection that can be used to monitor a second battery, for midpoint monitoring, or to connect a temperature sensor.

Differences compared to BMV-712 Battery Monitor

• No visual and audible alarm (alarms are only visible via the VictronConnect app or GX device).
• No programmable relay.
• Waterproof.
• The shunt is attached to the battery monitor unit.

Specifications:

Supply Voltage Range: 6.5 - 70 VDC

Current Draw: < 1mA

Input Voltage Range for Auxiliary Battery: 6.5 - 70 VDC

Battery Capacity (Ah): 1 - 9999 Ah

Operating Temperature Range: -40 - 120°F (-40 +50°C)

Measures Voltage of Second Battery, or Temperature, or Midpoint: Yes

Temperature Measurement Range: -20 +50°C

VE.Direct Communication Port: Yes

Resolution & Accuracy

Current: ± 0.01A

Voltage: ± 0.01V

Amp Hours: ± 0.1 Ah

State of Charge (0 – 100%): ± 0.1%

Time to Go: ± 1 min

Temperature (if optional temperature sensor connected): ± 1°C/°F (0 - 50°C or 30 - 120°F)

Accuracy of Current Measurement: ± 0.4%

Offset: Less than 20 / 40 / 80 mA

Accuracy of Voltage Measurement: ± 0.3%

Installation & Dimensions:

Dimensions (h x w x d) 500A: 46 x 120 x 54 mm

Shunt connection bolts: M10 (0.3937 in)

Protection Category: IP65

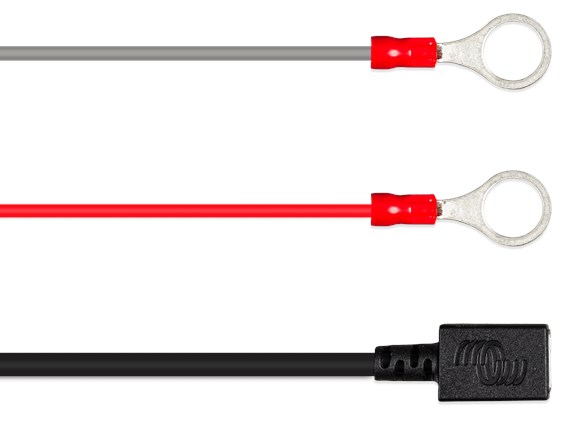

Cables: Two 1.5 m cables with 1 A fuse, for ‘+’ connection and starter battery or midpoint connection

VE.Direct cable: 1.5 m cable with a VE.Direct socket. Note that a VE.Direct cable is needed to connect a GX device (not included).

Temperature sensor: Optional (ASS000100000)
