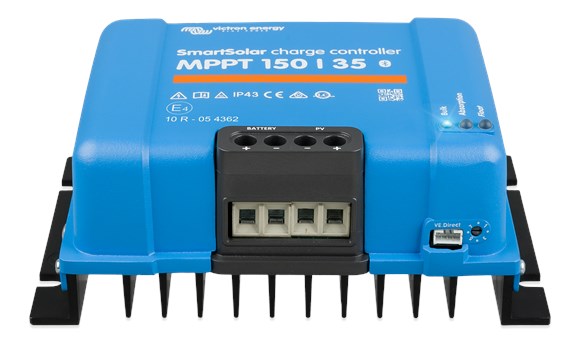

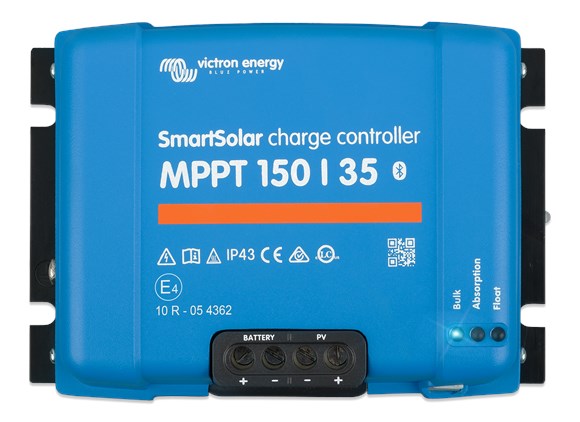

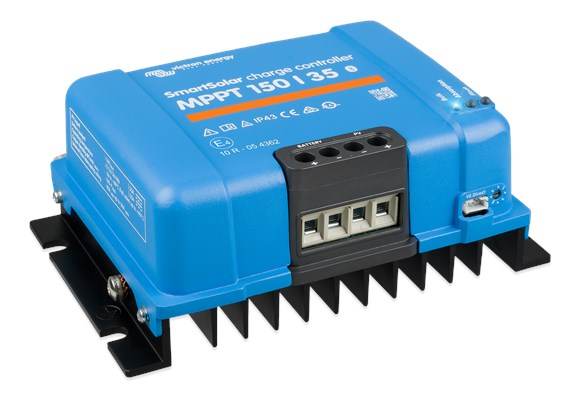

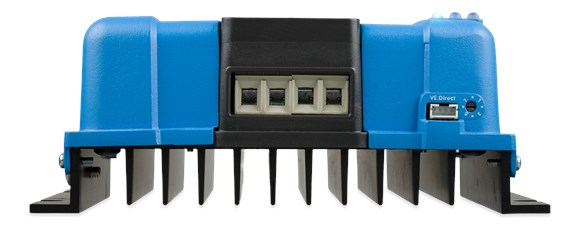

Victron Energy SCC115035210 SmartSolar MPPT 150/35

Bluetooth Smart built-in

The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

VE.Direct

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Ultrafast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).

Flexible charge algorithm

Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

- Over-temperature protection and power derating when temperature is high.

- PV short circuit and PV reverse polarity protection.

- PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Optional external battery voltage and temperature sensing via Bluetooth

A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.

Fully discharged battery recovery function

Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.

Specifications:

Battery Voltage: 12 / 24 / 48V Auto Select (software tool needed to select 36V)

Rated Charge Current: 35A

Nominal PV Power: 35A 12V: 500W / 24V: 1000W / 36V: 1500W / 48V: 2000W

Max. PV Short Circuit Current: 40A

Maximum PV Open Circuit Voltage: 150V maximum coldest conditions (145V start-up and operating maximum)

Maximum Efficiency: 98%

Self-consumption: 12V - 20mA; 24V - 15mA; 48V - 10mA

Charge Voltage - Absorption: 14.4 / 28.8 / 43.2 / 57.6V (adjustable)

Charge Voltage - Float: 13.8 / 27.6 / 41.4 / 55.2V (adjustable)

Charge Algorithm: multi-stage adaptive (eight pre-programmed algorithms)

Temperature Compensation: -16 mV / -32 mV / -64 mV / °C

Protection: PV reverse polarity / output short circuit / over-temperature

Operating Temperature: .22 to +140°F - full rated output up to 104°F  (-30 to +60°C - full rated output up to 40°C)

Humidity: 95%, non-condensing

Data Communication Port: VE.Direct

Power Terminals: 6AWG (16 mm²)

Protection Category: IP43 (electronic components), IP22 (connection area)

Dimensions (h x w x d): 5.1 x 7.3 x 2.7 in (130 x 186 x 70 mm)

Safety: EN/IEC 62109-1, UL 1741, CSA C22.2
