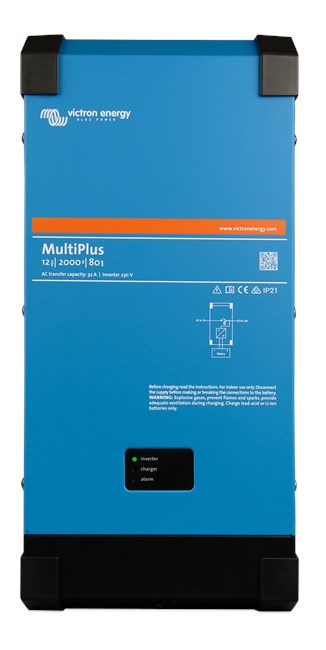

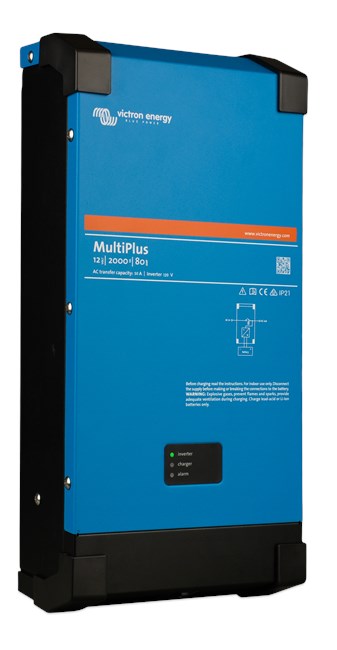

Multifunctional, with intelligent power management
The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge
technology, and a high-speed AC transfer switch in a single compact enclosure. Next to these primary functions, the
MultiPlus has several advanced features, as outlined below.
Parallel operation and three phase capability
Up to six Multis can operate in parallel to achieve higher power output.
In addition to parallel connection, three units can be configured for three-phase output.
PowerControl - Dealing with limited generator, shore side or grid power
With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of
other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being
overloaded.
PowerAssist - Boosting the capacity of shore or generator power
This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the
capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will
make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When
the load reduces, the spare power is used to recharge the battery.
Four stage adaptive charger and dual bank battery charging
The main output provides a powerful charge to the battery system by means of advanced ‘adaptive charge’ software.
The software fine-tunes the three-stage automatic process to suit the condition of the battery, and adds a fourth stage
for long periods of float charging. The adaptive charge process is described in more detail on the Phoenix Charger
datasheet and on our website, under Technical Information. In addition to this, the MultiPlus will charge a second
battery using an independent trickle charge output intended for a main engine or generator starter battery.
High start-up power
Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.
Search Mode
When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx.
70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load,
and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will
continue to operate. If not, the inverter will shut down again.
Programmable relay
By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm
or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).
Remote on / off / charger on
Three pole connector.
On-site system configuring, monitoring and control
After installation, the MultiPlus is ready to go.
Settings which can be changed with DIP switches: battery charge voltage / search mode.
For more settings use VE-Config or the VE.Bus Smart dongle.
Remote configuring and monitoring
Install a Cerbo GX or other GX product to connect to the internet.
Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of
charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.
Specifications:
PowerControl: Yes
PowerAssist: Yes
Transfer Switch: 50 A
Parallel and 3-Phase Operation: Yes
Input Voltage Range: 9.5 – 17 VDC
Output: Output Voltage 120 VAC ± 2% (Frequency: 60 Hz ± 0.1%)
Cont. Output Power at 25ºC / 77°F: 2000 W
Cont. Output Power at 25ºC / 77°F: 1600 W
Cont. Output Power at 40ºC / 104°F: 1450 W
Cont. Output Power at 65ºC / 150°F: 1100 W
Peak Power: 3500 W
Maximum Efficiency: 93%
Zero Load Power: 10 W
Zero Load Power - Search mode: 3 W
AC Input Input voltage range: 95-140 VAC (Input frequency: 45 – 65 Hz)
Charge Voltage - Absorption: 14.4 V
Charge Voltage - Float: 13.8 V
Storage Mode: 13.2 V
Charge Current - House Battery: 80A
Charge Current - Starter Battery: 1A
Battery Temperature Sensor: Yes
Programmable Relay: Yes (1x)
VE.Bus Communication Port: For parallel and three phase operation, remote monitoring and system integration
Remote On/Off: Yes
Operating Temp. Range: -40 - +65°C / -40 to 150°F (fan assisted cooling)
Humidity (non-condensing): max 95%
Protection Category: Steel (RAL 5012), IP 22

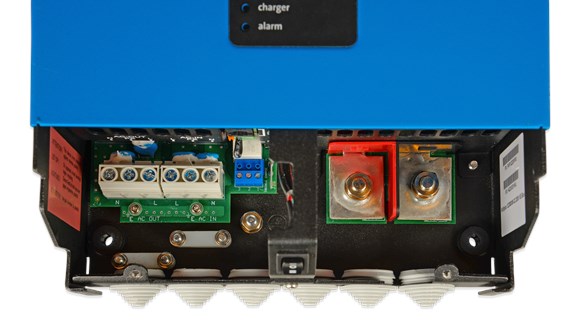

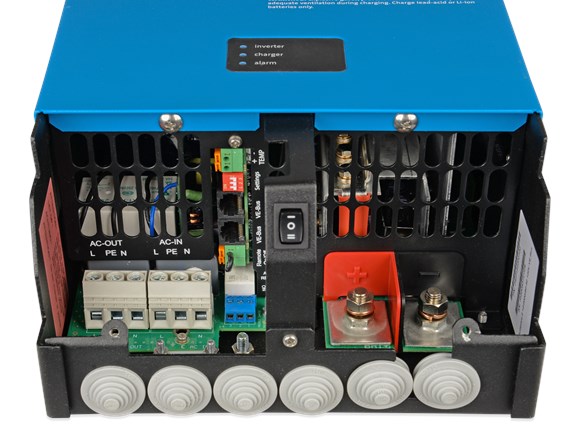

Battery-connection M8 bolts
120 V AC-Connection: Screw-terminal 6 AWG (13 mm²)
Dimensions (h x w x d): 19.9 x 9.3 x 5.8 inch (506 x 236 x 147mm)
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1
Emission and Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000- 6-3
