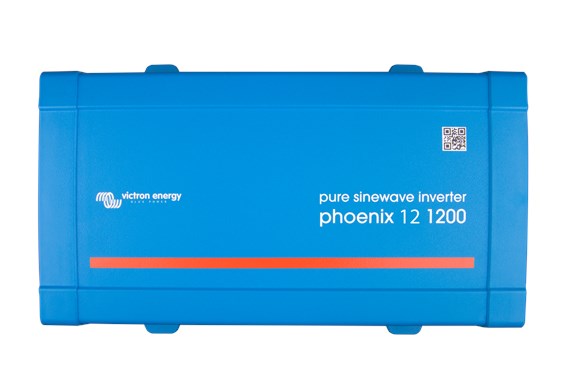

Victron Energy PIN122122510 Phoenix Inverter 12/1200 120V VE.Direct NEMA GFCI

Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode When inECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.

LED diagnosis Please see manual for a description.

To transfer the load to another AC source: the automatic transfer switch For our low power inverters, we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

DC connection with screw terminals No special tools needed for installation

VE.Direct communication port

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)

• Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)

Specifications:

Continuous Power: 1000W

Peak Power: 2200W

Output AC Voltage: 120V AC

Frequency: 50Hz or 60Hz

Input Voltage Range: 9.2 - 17V DC

Efficiency: 91%

Operating Temperature Range: -40 to +65°C (fan assisted cooling - Derate 1.25% per °C above 40°C)

Humidity (non-condensing): Max 95%

Protection Rating: IP 21

AC Outlet: GFCI

Battery Connection: Screw Terminal

Maximum Cable Size: 4AWG

Weight: 16.3 lbs (7.4kg)

Dimensions (H x W x D): 4.6 x 9.1 x 12.9 in (117 x 232 x 362 mm)
