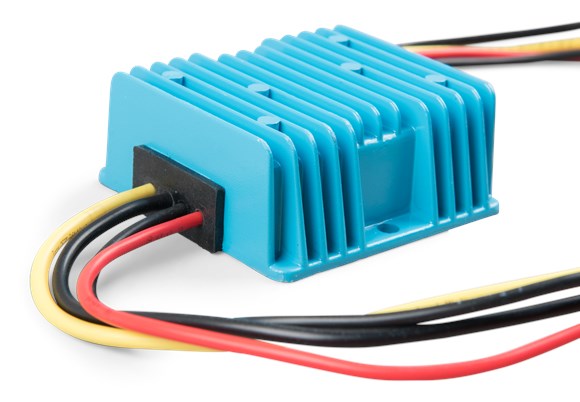

Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.

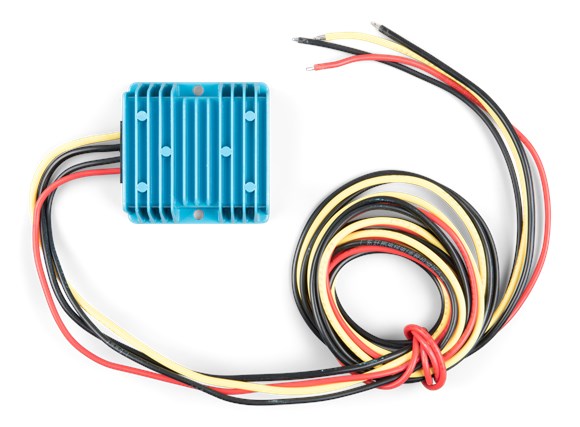

Extra-long input and output cables
Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.
Wide input voltage range
With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.
Protected against overheating
It can be used in a hot environment such as a machine room.
Input voltage range: 15-40VDC
Under voltage shutdown: 13V
Under voltage restart: 14V
No load current at 24V: 20mA
DC output voltage: 12V +/- 3%
Maximum continuous output current: 10A
Ripple & Noise: 75mVpp
Operating temperature range (derate 3% per °C above 40°C): -40 to +70°C (full rated output up to 40°C)
Overload protection: Hiccup mode, recovers automatically after fault condition is removed
Short circuit proof: Yes
Protection against reverse polarity: No - requires additional fuse or circuit breaker
Material & Color: Aluminium (blue RAL 5012)
Protection category: IP67
DC connection: Two input and two output cables, length 1.8m
Cable cross section (input): 1.5mm² (15 AWG)
Cable cross section (output): 1.5mm² (15 AWG)
Weight: 0.66 lbs (300 g)
Dimensions (h x w x d): 2.91 x 2.91 x 1.25 in (74 x 74 x 32 mm)
