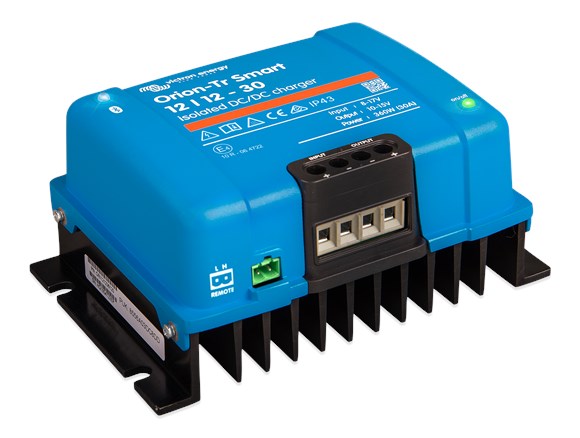

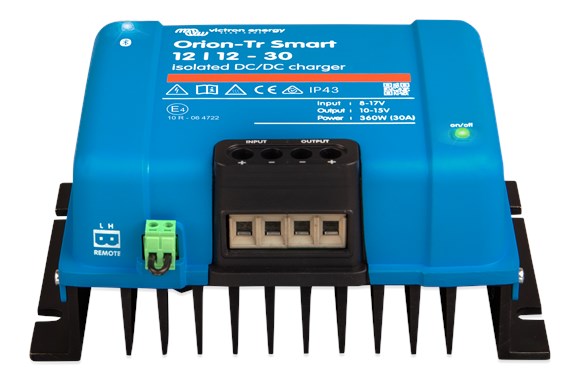

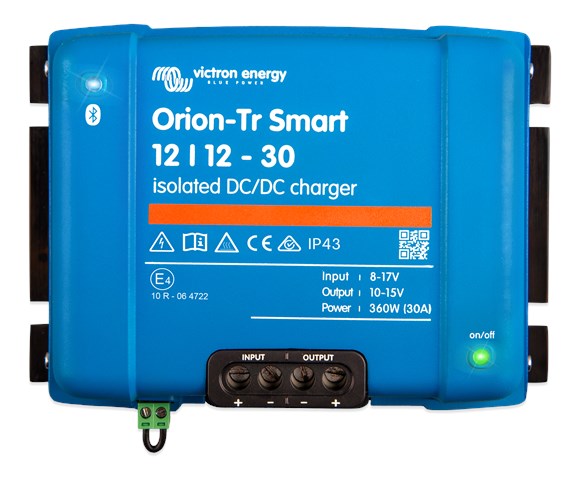

Picture of Victron Energy ORI121236120 Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC charger
Victron Energy ORI121236120 Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC charger
  • $243.95
  • In Stock
  • SKU: ORI121236120

Victron Energy ORI121236120 Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC charger

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. Suitable for both lead acid and lithium batteries. Read Full Description
$243.95
Availability: In Stock
SKU: ORI121236120
GTIN: 8719076047698

Bluetooth Smart Enabled

Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.

Fully programmable

- Battery charge algorithm (configurable) or fixed output.

- Smart alternator compatibility: engine running detection mechanism.

Adaptive 3-stage charge algorithm: bulk – absorption – float

• For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.

• For lithium batteries absorption time is fixed, default 2 hours.

• Alternatively, a fixed output voltage can be chosen.

Suitable for use in vehicles with a smart alternator

The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details).

Remote On/Off

A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All models are short circuit proof and can be paralleled to increase output current

An unlimited number of units can be connected in parallel. High temperature protected The output current will reduce at high ambient temperature.

IP43 protection

When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation.

Input fuse (not replaceable)

Specifications:

Input Voltage Range: 10-17 V

Under Voltage Shut Down: 7 V

Under Voltage Restart: 7.5 V

Nominal Output Voltage: 12.2 V

Output Voltage Adjust Range: 10-15 V

Output Voltage Tolerance: ± 0.2 V

Output Noise: 2 mV rms

Continuous Output Current: 30 A

Maximum Output Current (10s): 40 A

Short Circuit Output Current: 60 A

Continuous Power Output at 77 °F: 430W

Continuous Power Output at 104 °F: 360W

Efficiency: 87%

No Load Input Current: < 80 mA

Standby Current: Less than 1 mA

Galvanic Isolation: 200 VDC between input, output and case

Operating temperature range -4 to +131 °F

Humidity: Max. 95 % non-condensing

DC Connection: Screw terminals

Maximum Cable Cross-Section: 6AWG (16 mm²)

Weight: 3lb (1.8 kg)

Dimensions (h x w x d): 5.1 x 7.3 x 3.2 in (130 x 186 x 80 mm)

Protection Category: IP43 (electronic components), IP22 (connection area)

Standards:

Safety: EN 60950

Emission/Immunity: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2

Automotive Directive: ECE R10-5
