Victron Energy BPP900480100 Ekrano GX

Ekrano GX: communication-centre
The Ekrano GX represents the next generation in the GX product family. With its complete range of connections and interfaces as well as a built-in 7-inch touchscreen display, it is the most powerful GX device to date and allows you to always have perfect control over your system from wherever you are and to maximise its performance. Simply access your system via our Victron Remote Management (VRM) portal, or access it directly, using the built-in touchscreen, a Multi-Functional Display (MFD) or our VictronConnect app thanks to its built-in WiFi Access Point. The Ekrano GX is also the successor to the Color Control GX.

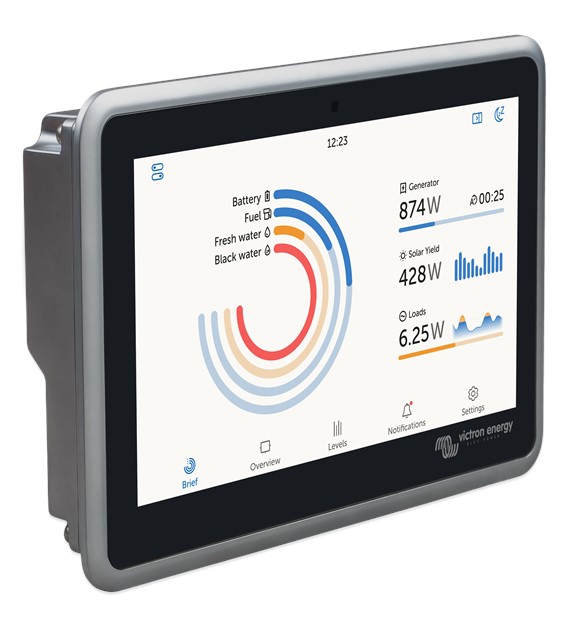

Built-in 7-inch touchscreen display
The seven-inch touchscreen display gives an instant overview of your system and allows you to adjust settings. The touch function can be disabled (or enabled) via a recessed button on the back to prevent unauthorised use. When mounted using the supplied steel bracket, the display is watertight from the outside.

Remote Console on VRM
Monitor, control and configure the Ekrano GX remotely, over the internet, just like if you were standing in front of the device, using the Remote Console. The same functionality is also available via local LAN network or via the built-in WiFi access point of the Ekrano GX.

Perfect monitoring & control

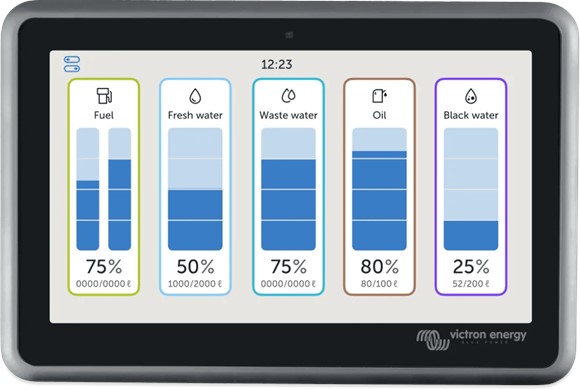

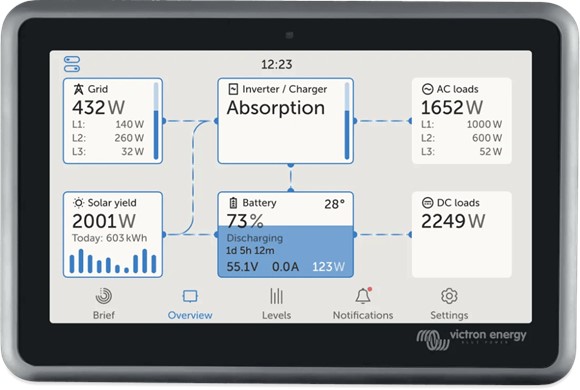

Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve complications remotely.

Simple mounting and configuration

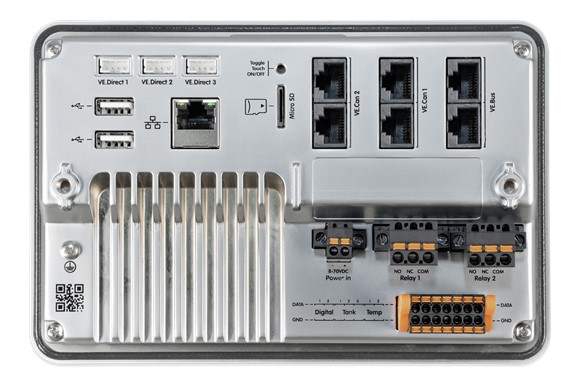

The Ekrano GX installs easily via a cut-out for flush panel mounting and includes both a steel bracket and springs for blind hole mounting. All ports are easily accessible from the back. The power and relay terminal blocks can be screwed in place and the IO terminal block has a quick release clamp for easy access. The Bluetooth feature allows for quick connection and configuration via our VictronConnect app.

Specifications:

• Supply voltage: 8 – 70 VDC
• Power draw display on (100 % brightness): 6.2 W @ 12 V | 6.6 W @ 24 V | 7.4 W @ 48 V
• Power draw display off:  2.6 W 12 V | 3.0 W @ 24 V | 3.7 W @ 48 V
• Relay: 2 x NO/NC, DC up to 30 VDC: 3 A, AC: 1 A, 125 VAC
• VE.Direct ports (always isolated): 3 (max. possible VE.Direct devices: 25)
• VE.Bus (always isolated): 1 bus with 2 paralleled RJ45 sockets
• VE.Can 1: Yes - isolated
• VE.Can 2: Yes – non-isolated
• Ethernet: Yes
• WiFi: Yes
• Bluetooth Smart: Yes
• USB Host ports: Yes – 2 x USB-A (max. 1.5 A@5 V combined)
• MicroSD Card Slot: Yes – SDHC cards up to max. 32 GB
• Resistive tank level inputs: 3
• Temperature sense inputs: 2
• Digital Inputs: 2
• Display resolution: 1024 x 600 pixels
• Display max. backlight brightness: 1000 cd/m2
• Backlight dimming: Yes – dynamic via built-in ambient light sensor, or manually via Remote Console, With timer for auto on/off
• Touch toggle on/off button: Yes – recessed button on the back (prevents unauthorised use)
• Outer dimensions (h x w x d): 124 x 187 x 29.8 mm | 4.88 x 7.36 x 1.17 in (without connectors and mounting accessories)
• Operating temperature range: -20 to +50 °C
• Mounting: Panel integrated flush mount or blind hole mount with included mounting accessories
• Buzzer: Yes
• Protection category: Front: IP54 (when installed with steel bracket), IP31 (when installed with springs), Back: IP21
• Safety: IEC 62368-1
• EMC: EN 301489-1, EN 301489-17
• Automotive: ECE R10-6
