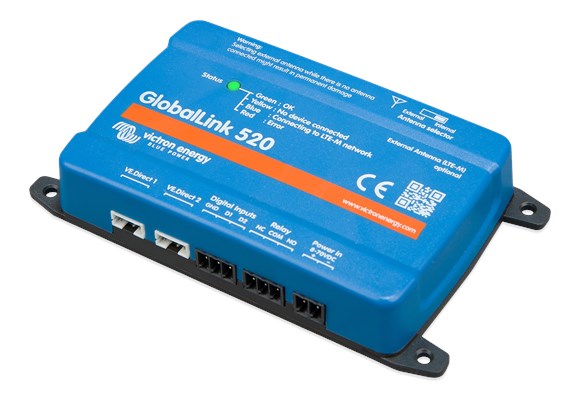

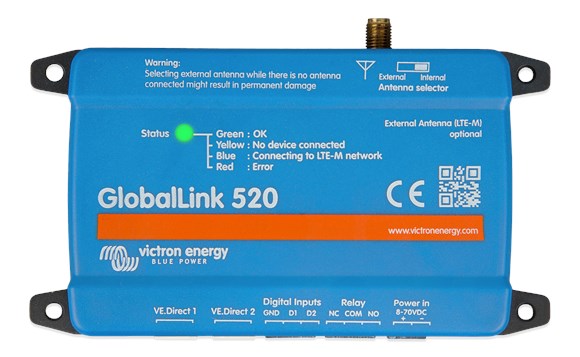

Victron Energy ASS030543020 GlobalLink 520

Global Connectivity with 4G LTE-M

This cellular technology is designed to connect Internet of Things devices to existing 4G towers while using low energy. LTE-M does support handovers and roaming so it is possible to use this device in a moving vehicle like a campervan. Check the list in our GlobalLink 520 manual to see if LTE-M is officially confirmed to be available in your area. Coverage is increasing every week as local providers roll out support. Your purchase includes 5 years of connectivity, so there is no need to worry about purchasing a separate data bundle and SIM-card.

System Monitoring and Control

The GlobalLink 520 comes with two communication ports, which allows connecting up to two VE.Direct devices such as a BMV Battery Monitor and/or a MPPT Solar Charge Controller directly to VRM. With two digital inputs that also act as pulse counters and a remote controllable relay, it's a perfect solution to monitor and control your installation.

Built in Antenna

The GlobalLink 520 comes with a built-in antenna that is designed to work all around the globe. However if you require better reception or want to install your module in a utility van for example, it is also possible to mount an external antenna.

RuuviTag Support

The GlobalLink 520 now supports the RuuviTag temperature sensors. These battery powered sensors connect via BLE and are easy to setup via VictronConnect. All the data, like temperature, humidty and airpressure from the RuuviTag sensors, will directly be available in VRM.

Features

• Smart device and VE.Direct support: Connect up to 10 Victron smart products using Bluetooth and
  two hard wired VE.Direct devices.
• VRM-monitoring: Monitor battery state of charge, power consumption, power harvest from PV
  generator and grid or check temperature measurements. Follow up on alerts and perform
  diagnostics checks.
• RuuviTag support: These sensors connect via BLE and are easy to setup via VictronConnect. All
  the data, like temperature, humidity and atmospheric pressure will be directly available in VRM
• Support for custom SIM cards.
• Simple mounting and configuration: The GlobalLink 520 is wall mountable. The Bluetooth
  feature enables a quick connection and easy configuration via our VictronConnect app.

 Specifications

Supply Voltage: 8-70V DC

VE.Direct Ports: 2

RuuviTag Support: Yes

Digital Output: 2

Relay: 1 x NO/NC - DC: up to 30VDC/2A - AC: 0.5A 125VAC

Bluetooth: Yes

WiFi: No

Supported Devices
