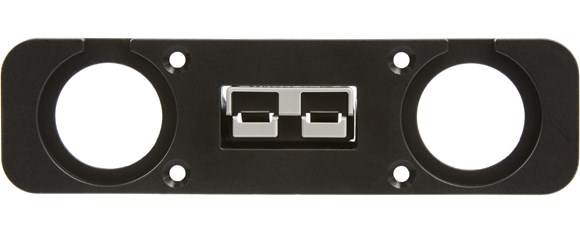

Powerwerx PanelPlateSB3 for Anderson SB50 Series Connectors with Two Panel Mount 1-1/8" Holes

$11.99
In Stock
SKU: PanelPlateSB3

Powerwerx PanelPlateSB3 for Anderson SB50 Series Connectors with Two Panel Mount 1-1/8" Holes

Anderson Power SB50 Series Connector flush mounting to your dashboard, panel or chassis. Ideal for fixed mounted application for Anderson Power SB50 series connectors with two standard 1-1/8" panel mounting holes. Includes (1) Gray SB50 housing, (2) #8 gauge contacts, mounting plate and hardware. Can be mounted in a vertical or horizontal position. Read Full Description

$11.99

Qty:

Availability: In Stock

SKU: PanelPlateSB3

GTIN: 840128906026

Be the first to review this product

Compatibility: Mounting Plate designed for Anderson Power SB50 Series connector & Two Standard 1-1/8" Panel Mount Holes
Maximum Voltage 600V AC or DC (for SB50 connector)
Maximum Amperage Up to 120A maximum, 50A continuous (for SB50 connector)
Rear Housing Depth 1-3/4" (not including wiring)

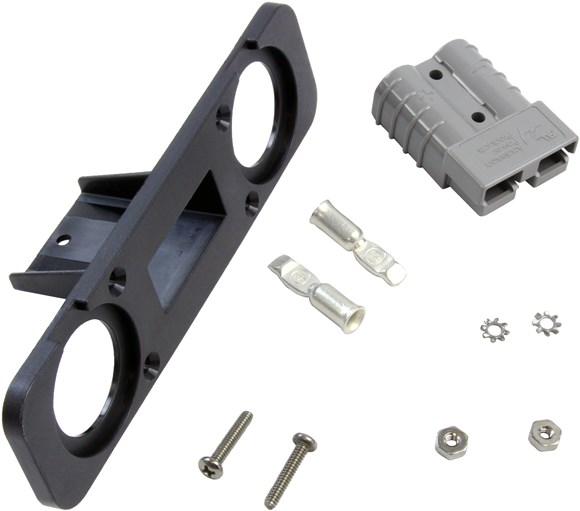

Includes: (1) Black Mounting Plate, (1) Anderson SB50 Gray Housing, (2) #8 gauge contacts and (2) SB50 mounting bolts, nuts and lock washers.
Customers may purchase alternate colored SB50 housings and change connector colors as well as different contacts sizes as needed.
Optional: Purchased separately (2) 1-1/8" panel mount products, PLUG-SB50 Rigid Protective Plug/Cover with Lanyard.
