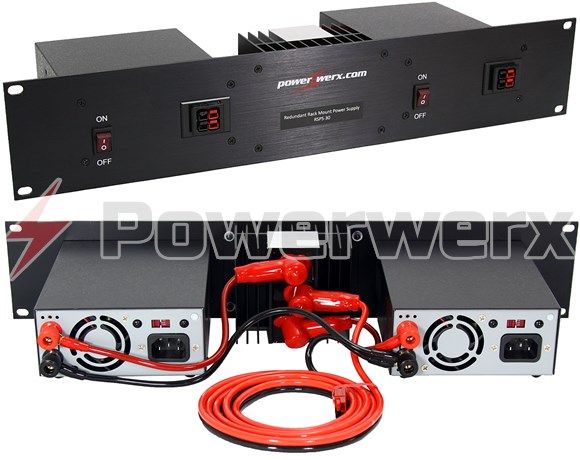

The RSPS-30 is a 19" rack mounted power supply system featuring a redundant 12V DC output. The APS (automatic power selector) is located in the center of the rack mount and constantly monitors the DC output voltage. When the APS senses a primary power supply drop out, it will automatically switch over to the secondary power supply. A 6 foot power cable is included for simple connection to your equipment.
The primary power supply’s output voltage is set at the factory to 14.1 VDC. The secondary or back up supply’s output is fixed at 13.85 VDC. When the APS senses a voltage drop on the main supply, it will automatically switch over to the secondary power supply for continuous operation. Once the primary power supply voltage resumes back to its normal output, the APS will automatically switch back to the primary power supply. PLEASE NOTE: for proper operation a minimum of 0.5 V separation is required between the primary and secondary power supply voltage outputs.

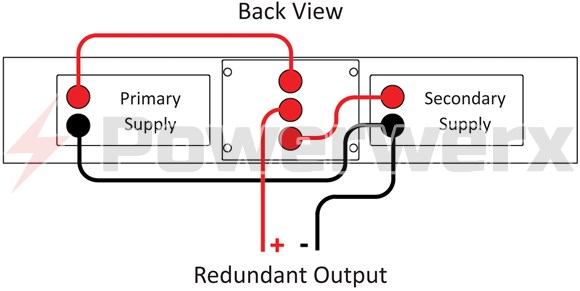

Mount the 19" Redundant power supply system and secure with (4) rack mount screws. Connect the supplied DC output cord to your equipment. Please add a 30A fuse/holder to the DC output cord and make sure you have good air flow to both power supplies. Plug in both AC power cords to a reliable AC wall outlet. To ensure proper operation, turn on the AC power switch located on the front of each power supply and each front mounted switch should illuminate.
With both power supplies on, the system should be operating normally. Now switch OFF the primary power supply’s front mounted switch and the secondary power supply should now be powering the system. After one minute, turn ON the primary power supply front mounted switch and the system should once again operate normally.
The Powerwerx Rack Mount Dual Switching Power Supply Model RSPS-30 which is designed to supply 25 Amps continuous and 30 Amps surge (up to 5 minutes) at 13.85 VDC. Loads can be connected to either the rear binding posts or the front Powerpole connectors. Any output may provide up to 30 Amps individually, and the total output is limited at 30 Amps.
- Front Connections: 2 sets of Powerpole connectors
- Rear Connections: 1/4 inch binding posts that also accept banana plugs, ring terminals or compression connections
- Illuminated Power Switch
- Input Range: 100-120 VAC or 200-240 VAC, 50/60Hz (Switchable)
- Output Voltage: 14.1 VDC fixed
- Output Amperage: 25 continuous, 30 surge
- Internal Protection: Thermal, over current
- Internal Input Fuse: 6.3 Amps at 115 VAC
- Ripple Peak-to-Peak Max. <100mVpp
- Noise Peak-to-Peak Max. <100mVpp
- Operating temperature rating: 0 – 50 °C
- Storage temperature: -20 – 85 °C
Physical dimensions and materials:
- Weight: 6.4 lbs. (102 oz.)
- Overall Dimensions: 6.1 x 19 x 3.5 in (154mm long, 483mm wide, 89mm tall)
- Fan: Quiet internal cooling fan
- Machined metal case front bezel
- Meets FCC CFR Title 47 Part 15 Subpart B: Class B, CISPR: 2005 ANSI C63.4: 2003
- Meets CE/LVD (Low-Voltage Directive 2006/95/EC) standard
- Meets EMC: EN 55022:206+A1: 2007, 2010, EN 61000-3-2:2006
The Powerpole connectors mounted on the front panel conform to the RACES/ARES standard orientation.
Input Voltage Selection
The power supply is set up for 230V AC input as shipped from the factory. For 115V AC applications, set the recessed 115/230 input select switch located on the rear of the power supply into the proper position. Positions are identified on the switch. Use a small screwdriver to slide the switch into position. No adjustment is necessary for either 50 or 60 Hz input.
- Land mobile radio base stations
- Communications systems
- Security systems
- Automotive & marine systems
- OEM applications
- Test equipment
- Electronic displays
- 12 Volt lighting systems
- GPS receivers
- DC computers
- Rack Mounted Power Supplies
- (2) AC Power Cords, 4 ft.
- Unplug the power supply from the mains supply outlet.
- Select the correct input voltage (See Input Voltage Selection).
- Connect the power cable’s positive (red) wire to the positive terminal and connect the negative (black) wire to the negative terminal on the back of the power supply or use the Powerpole connectors mounted on the front panel.
- Plug the power cable into the power socket on the back of the radio.
- Plug the power supply into the mains supply outlet.
Turning the power supply on
Turn the power supply on by pressing the power switch to the 'ON' Position.
Turning the power supply off
Before you turn the power supply off, turn the radio off as described in the user documentation for the radio. Then turn the power supply off by pressing the power switch to the 'OFF' Position.
The RSPS-30 power supply is cooled by convection and forced air cooling (normal airflow around the power supply in combination with a temperature controlled fan to improve cooling at higher levels of use). The fan is activated by a sensor when the temperature rises above 70°C.
The Powerwerx support policy is simple: we want you to be happy! If you have a problem, please feel free to contact us and we will do our best to get you up and running as soon as possible.
The RSPS-30 has a three-year limited warranty. We will repair or replace (at our discretion) your RSPS-30 if you encounter any problems within three years from the date of purchase. We reserve the right to charge a reasonable fee for repairing units with user-inflicted damage. It is your responsibility to ship the defective unit back to Powerwerx. We will pay for the return shipping back to you. We reserve the right to upgrade your equipment to an equivalent or better model
