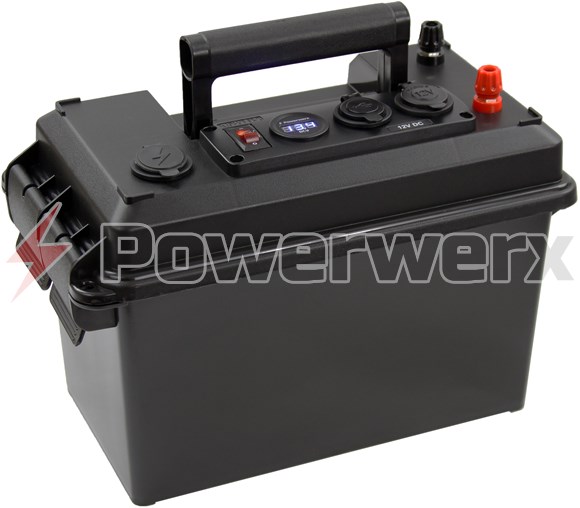

Picture of Powerwerx PWRbox Portable Power Box for 12-15Ah SLA or AGM Batteries
Powerwerx PWRbox Portable Power Box for 12-15Ah SLA or AGM Batteries
  • $119.99
  • In Stock
  • SKU: PWRbox-F2

Powerwerx PWRbox Portable Power Box for 12-15Ah SLA or AGM Batteries

Ideal for charging smartphones, tablets, radios and operating DC powered electronics. When the grid fails or you are off-grid, the PWRbox is always ready to go. Proudly made in the USA. Read Full Description
$119.99
Add a Battery?
Availability: In Stock
SKU: PWRbox-F2

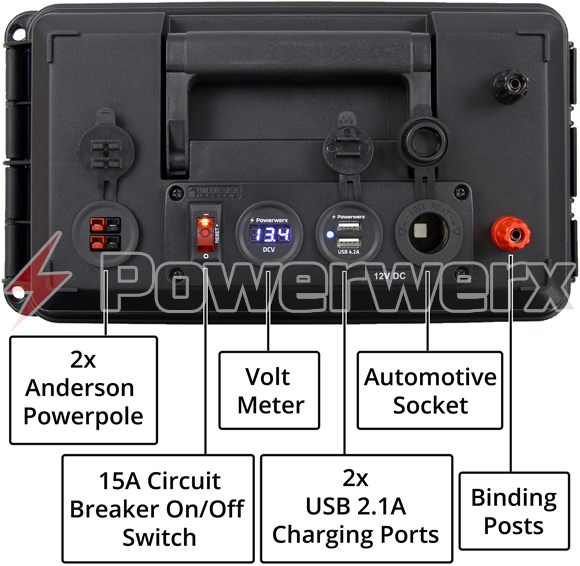

On/Off switch is included with built-in 15A circuit breaker protection for the following:

  • (1) Automotive 12V socket with cover (15A maximum)
  • (2) Fast USB charging ports with cover (5V @ 2.1A per port)
  • Battery status blue digital volt meter

High current DC outputs (non-switched):

  • (2) Anderson Powerpole connectors with cover (25A maximum)
  • Heavy duty red/black binding posts (25A maximum)

Features:

  • Main on/off 15A backlit circuit breaker switch to turn your devices on/off and stop parasitic loads
  • Heavy duty M6 binding posts accepts 1/4" ring terminals, banana plugs or bare wire
  • Battery is protected with an inline 25A ATO blade fuse

Specifications:

  • Available AGM Battery Options: UB12120 (12Ah), UB12150 (15Ah)
  • Nominal Battery Voltage: 12VDC
  • Battery Connection: Female F2 Faston Terminal (with 25A inline fuse)
  • Exterior Dimensions (including binding posts): 9.75 in. H x 7.375 in. W x 13.5 in. L (247.7 mm x 187.3 mm x 342.9 mm)
  • Maximum Interior Dimensions: 5.88 to 7.00 in. H x 5.94 in. W x 11 in. L (149.2 to 177.8 mm x 150.9 mm x 279.4 mm)
Customer Reviews
Excellent Choice When You Lack Tools or Want to Save Time By
There are multiple videos on YouTube which show you how to make a power box. They all tell you to buy a plastic ammo box and drill multiple holes in the box that will be used to mount accessories in the box such as a voltage meter, on/off switch, USB ports, banana jack posts, a cigarette lighter shaped port, fuses, etc. They tell you to cut up some wires and hook up all these accessories together in the ammo box with detailed instructions on where you will be attaching all these wires and accessories. This product is virtually identical to what they are showing you how to make in the YouTube videos. Buying this product will save you a great deal of time on the complicated assembly they show in the videos. It will also save you money if you lack the tools needed to make your own power box.
Was this review helpful? Yes No (1/0)
Excellent product! A must for portable ham radio operation. By
I was considering buying the bits and pieces and building this myself as I already had the box.  But truthfully the difference in price for the parts vs the already built unit is minimal.  Powerwerx has already assembled and wired the unit and all you need to do is put in the battery and connect it.  The power button even has a circuit breaker built in!

I'm using it for portable power for my HF and VHF/UHF Amateur Radios that run 10W of output power.  Along with a solar panel and solar charger I hope to never be out of power.  I look forward to setting my radios, powerbox and solar panel up in the park or take camping this summer!

Now I can use the spare identical box for all the cables, antennas and accessories for the radio.  Simply grab the radios, the 2 boxes and go!

Cheers, Garnet Ryder, VE7GNR
Was this review helpful? Yes No (4/0)
