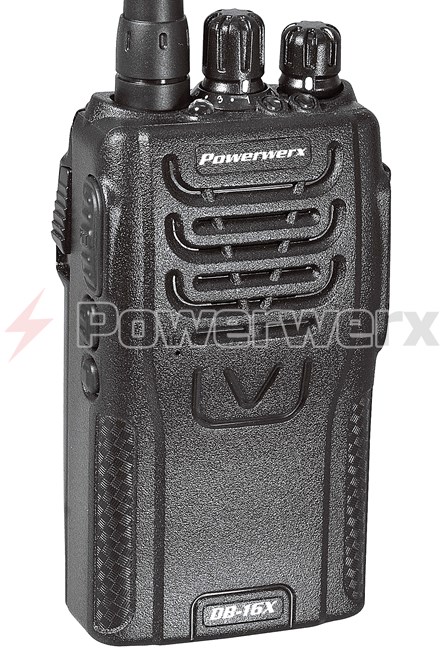

The DB-16X is a compact, high-performance dual band handheld commercial transceiver providing up to 5 Watts of RF power on VHF and 4 Watts on UHF, along with high audio output (500 mW).
Pre-programmed with 16 business channels. Ideal for security patrols, business communications, schools, construction crews, universities, and other organizations that have FCC licensed frequencies. FCC Part 90 certified.
Channel 1 | 464.5500 MHz | 67.0 Tone | 1W | Business Ch. CLS-1 (Narrow 2.5 KHz) |
Channel 2 | 467.9250 MHz | 67.0 Tone | 1W | Business Ch. CLS-2 (Narrow 2.5 KHz) |
Channel 3 | 467.8500 MHz | 67.0 Tone | 1W | Business Ch. CLS-3 (Narrow 2.5 KHz) |
Channel 4 | 467.8750 MHz | 67.0 Tone | 1W | Business Ch. CLS-4 (Narrow 2.5 KHz) |
Channel 5 | 469.5125 MHz | 77.0 Tone | 1W | Business Ch. CLS-54 (Narrow 2.5 KHz) |
Channel 6 | 466.3125 MHz | 110.9 Tone | 1W | Business Ch. CLS-45 (Narrow 2.5 KHz) |
Channel 7 | 466.3375 MHz | 110.9 Tone | 1W | Business Ch. CLS-46 (Narrow 2.5 KHz) |
Channel 8 | 466.3625 MHz | 110.9 Tone | 1W | Business Ch. CLS-47 (Narrow 2.5 KHz) |
Channel 9 | 467.7875 MHz | 110.9 Tone | 1W | Business Ch. CLS-48 (Narrow 2.5 KHz) |
Channel 10 | 467.8375 MHz | 110.9 Tone | 4W | Business Ch. CLS-49 (Narrow 2.5 KHz) |
Channel 11 | 467.8625 MHz | 110.9 Tone | 4W | Business Ch. CLS-50 (Narrow 2.5 KHz) |
Channel 12 | 467.8875 MHz | 110.9 Tone | 4W | Business Ch. CLS-51 (Narrow 2.5 KHz) |
Channel 13 | 467.9125 MHz | 110.9 Tone | 4W | Business Ch. CLS-52 (Narrow 2.5 KHz) |
Channel 14 | 469.4875 MHz | 110.9 Tone | 4W | Business Ch. CLS-53 (Narrow 2.5 KHz) |
Channel 15 | 154.570 MHz | 88.5 Tone | 1W | VHF Business Ch. (Narrow 2.5 KHz) |
Channel 16 | 154.600 MHz | 88.5 Tone | 1W | VHF Business Ch. (Narrow 2.5 KHz) |
Frequency Range of 136-174, 406-512 MHz RX/TX. FM: 76-108 MHz (RX). Software programmable via the optional low cost USB programming cable.
FCC Approval
The DB-16X is Part 90 certified for commercial use. CE & FCC Part 90 certified, FCC ID: WVTWOUXUN07
Powerwerx Warranty Policy
- 12 month limited warranty on the radio against defects in materials and workmanship
- 6 month limited warranty on the included radio battery and battery charger against defects in materials and workmanship
DB-16X Model Features
Standard Accessories Included with Every Radio
- Dual band radio
- Dual band antenna (4 inch rubber duck type with standard SMA connector)
- Extended life 1700 mAh high capacity li-ion battery pack (16 hours of operation)
- Intelligent desktop 3-4 hour rapid charger
- Desktop charger AC power cord
- Belt clip
- Wrist strap
- English user manual
- Programming software (Free Download)
Features
- Selectable high/low power settings (VHF: 5W high/1W low) (UHF: 4W high/1W low)
- Includes extended life 1700 mAh high capacity li-ion battery as standard
- Includes intelligent desktop 3-4 hour rapid charger
- Loud speaker audio output (500 mW)
- Bright flashlight illumination function
- Meets IP55 waterproof rating
- English make voice prompts enable non-sighted operation (can be turned off)
- 16 memory channels
- Digital FM radio (76-108MHz)
- Wide/narrow bandwidth selection (25 or 12.5 kHz)
| - Windows PC programmable, free software available for download. Optional low cost cable (SKU: WXUSB) required.
- Radio to radio cloning with optional cable (SKU: WXCLN)
- Same channel: VHF TX & UHF RX or UHF TX & VHF RX available
- 105 groups DCS/50 groups CTCSS
- CTCSS encode/Decode (no decode delay)
- Low battery prompt
- Busy channel lockout
- Selectable time out timer (from 15 to 600 seconds)
- Selectable step sizes of 2.5, 5, 6.25, 10, 12.5, 25, 50 or 100 kHz
- Multiple scan modes
- VOX Function (adjustable level)
|
Specifications | DB-16X |
---|
Frequency Range RX/TX | VHF: 136-174 MHz UHF: 406-512 MHz FM: 76-108 MHz (RX) |
Memory Channels | 16 channels (shared) |
Operating Voltage | 7.4 VDC |
Operating Temperature | -22°F to 140°F (-30°C to +60°C) |
Dimensions (W x H x D) | 2.4 x 4.8 x 1.6 inches (61 x 121 x 39.5mm) (with 1700 mAh battery pack, without antenna) |
Weight | 9.7 ounces (274 grams) (with 1700 mAh battery pack) |
RF Carrier Power | VHF: 5W high/1W low, UHF: 4W high/1W low |
Audio Output Power | 500mW maximum |
Waterproof Rating | Meets IP55 waterproof rating |
