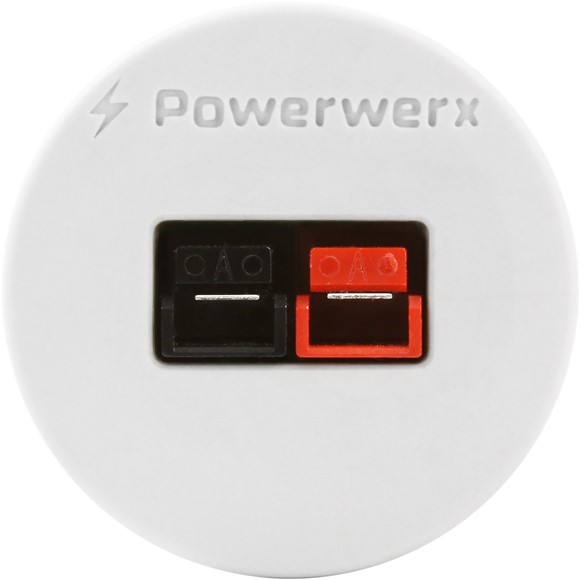

Powerwerx PanelPole1-White, Panel Mount Housing for a Single Powerpole Connector with a Weather Tight Cover in White
  • $21.99
  • In Stock
  • SKU: PanelPole1-White

Powerwerx PanelPole1-White, Panel Mount Housing for a Single Powerpole Connector with a Weather Tight Cover in White

Easily add Powerpole outputs to your boat, RV, trailer or specialty vehicle. Weather tight rubber cover protects connectors when not in use. High output capacity of up to 45A on each Powerpole. Includes (2) 30A contacts for 12-14 AWG wire. Fits 1-1/8" dia. hole. User removable retaining pin allows for changing Powerpole connectors to different colors if needed. Read Full Description
$21.99
Availability: In Stock
SKU: PanelPole1-White
GTIN: 840128906040
The only weather tight panel mount housing for 15/30/45 amp Powerpole connectors. Fits any 1-1/8" diameter hole and secures via a rear threaded nut. Easy add high power (up to 45A) output on your boat, RV, trailer or specialty vehicle.

High Output Panel Mount

Includes (1) Anderson Powerpole connector, rated up to 30 amps continuous operation. Optional 261G2-LPBK contacts allow operation up to 45 amps with 10 AWG wire size.

Protective Weather Tight Cover

Included weather tight protective cover which seals front mounted Powerpole connectors when not in use.

Anderson Powerpole Connectors

Compatible and designed to work with your favorite Anderson Powerpole 15, 30 & 45 amp connectors.

Standard Mounting Hole

1 1/8" standard panel mounting hole compatible. Ideal for go-box, dashboard or chassis mounting.

Tech Specs

ConnectionsSupplied with (1) Red/Black Powerpole Connector. Customer may purchase alternate colored housings and change colors as needed.
CompatibilityMates with all 15, 30 & 45 amp Powerpole connectors
Maximum Voltage58VDC
Maximum AmperageUp to 45A each Powerpole connector (continuous). Includes: 30A Powerpole contacts for 12-14 AWG wire.
Mountable1-1/8" diameter standard panel mounting hole.
Rear Housing Depth7/8" (not including wiring)
IncludesIncludes: Single Body in White color, (1) Powerpole Red/Black connector, (2) 30A Powerpole Contacts, (1) Retaining Pin (pre-installed), (1) Weather Tight Black Rubber Cover, (1) Threaded Locking Nut

Powerpole® is a registered trademark of Anderson Power Products, Inc.
