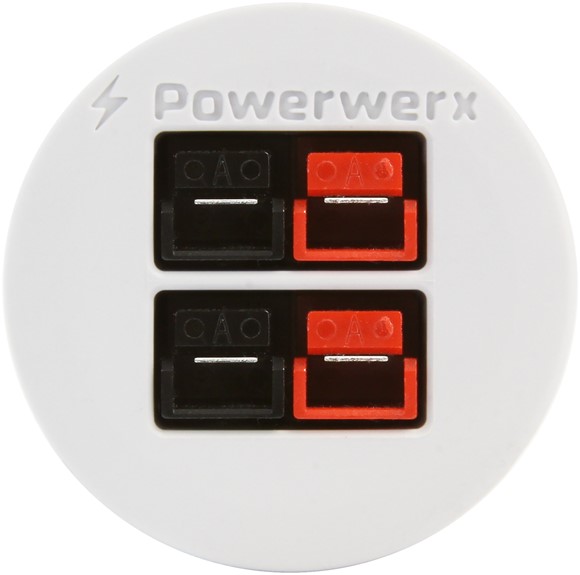

The only weather tight panel mount housing for 15/30/45 amp Powerpole connectors. Fits any 1-1/8" diameter hole and secures via a rear threaded nut. Easy add high power (up to 45A) output on your boat, RV, trailer or specialty vehicle.
Includes (2) Anderson Powerpole connectors, rated up to 30 amps continuous operation. Optional 261G2-LPBK contacts allow operation up to 45 amps with 10 AWG wire size.
Included weather tight protective cover which seals front mounted Powerpole connectors when not in use.
Compatible and designed to work with your favorite Anderson Powerpole 15, 30 & 45 amp connectors.
1 1/8" standard panel mounting hole compatible. Ideal for go-box, dashboard or chassis mounting.
|Connections||Supplied with (2) Red/Black Powerpole Connectors. Customer may purchase alternate colored housings and change colors as needed.|
|Compatibility||Mates with all 15, 30 & 45 amp Powerpole connectors|
|Maximum Amperage||Up to 45A each Powerpole connector (continuous). Includes: 30A Powerpole contacts for 12-14 AWG wire size.|
|Mountable||1-1/8" diameter standard panel mounting hole.|
|Rear Housing Depth||7/8" (not including wiring)|
|Includes||Includes: Dual Body in White color, (2) Powerpole Red/Black connector, (4) 30A Powerpole Contacts, (1) Retaining Pin (pre-installed), (1) Weather Tight Black Rubber Cover, (1) Threaded Locking Nut|
Powerpole® is a registered trademark of Anderson Power Products, Inc.
