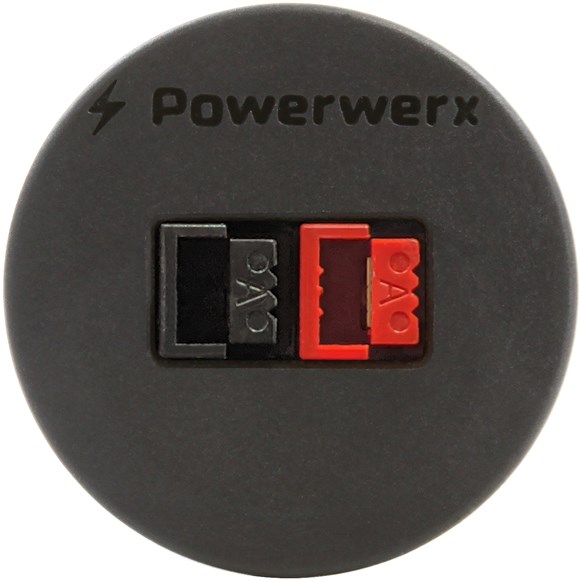

The only weather tight panel mount housing for vertical stacked fingerproof Powerpole connectors. Fits any 1-1/8" diameter hole and secures via a rear threaded nut. Easily add a high power (up to 45A) output on your dashboard, go-box, panel or chassis.
Includes (1) Vertical Stacked Fingerproof Anderson Powerpole connector, rated up to 45 amps continuous operation. | Included weather tight protective cover which seals front mounted Powerpole connectors when not in use. |
Designed to work with Vertical Stacked Fingerproof Powerpoles. Compatible with most Goal Zero solar input cables that do not have an overmolded enclosure. | 1 1/8" standard panel mounting hole compatible. Ideal for mounting on any flat surface. Optional PanelPlate1 may be required for surfaces thicker than 1/2". |
Tech Specs
Connections | Supplied with (1) Red/Black Vertical Fingerproof Powerpole Connector. Black on top, and Red on bottom. Powerpoles are permanently installed, and cannot be removed or modified. |
Compatibility | Mates with GZ-98014, GZ-98064, EXFP-50, and other vertical fingerproof Powerpole cables that do not have an overmolded encloser. |
Maximum Voltage | 58VDC |
Maximum Amperage | Up to 45A each Powerpole connector (continuous). Includes: 45A Powerpole contacts for 10 AWG wire. |
Mountable | 1-1/8" diameter standard panel mounting hole. |
Rear Housing Depth | 7/8" (not including wiring) |
Includes | Includes: Single Body in Black color, (1) Powerpole Red/Black connector, (2) 45A Powerpole Contacts, (1) Weather Tight Black Rubber Cover, (1) Threaded Locking Nut |
Powerpole® is a registered trademark of Anderson Power Products, Inc.
