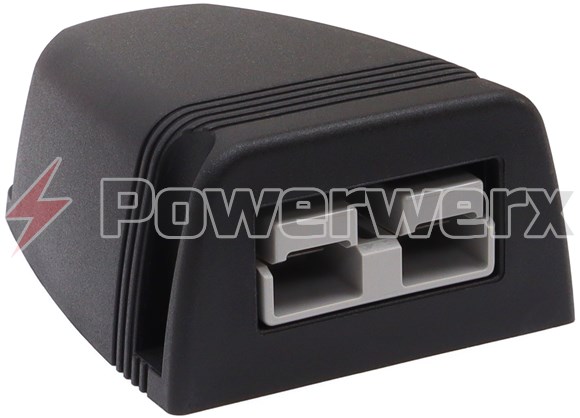

Powerwerx PanelPodSB for Anderson SB50 Series Connectors
  • $11.99
  • In Stock
  • SKU: PanelPodSB

Powerwerx PanelPodSB for Anderson SB50 Series Connectors

Anderson Power SB50 Series Panel Pod mount for easy mounting under dashboards and other flat surfaces. Ideal for fixed mounted application for Anderson Power SB50 series connectors. Includes (1) Gray SB50 housing, (2) #8 gauge contacts, mounting pod and (2) SB50 mounting bolts. Read Full Description
Availability: In Stock
SKU: PanelPodSB
GTIN: 840128919934
  • Compatibility: Mounting Pod designed for (1) Anderson Power SB50 Series connector
  • Maximum Voltage 600V AC or DC (for SB50 connector)
  • Maximum Amperage Up to 120A maximum, 50A continuous (for SB50 connector)
  • Pod Dimesnsions (W x H x D): 2.42 x 1.37 x 3.3 in (61.4 x 34.8 x 83.9 mm)

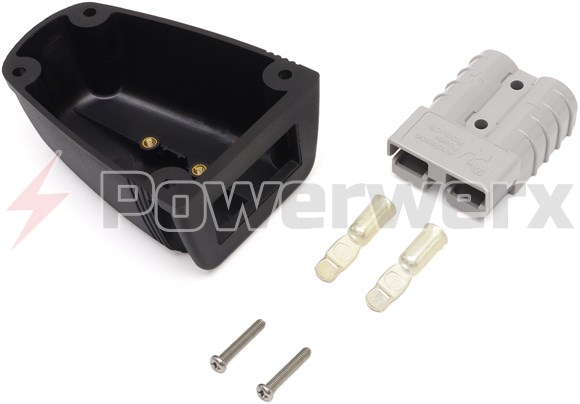

  • Includes: (1) Black plastic Mounting Pod, (1) Anderson SB50 Gray Housing, (2) #8 gauge contacts and (2) SB50 mounting bolts.
  • Customers may purchase alternate colored SB50 housings and change connector colors as well as different contacts sizes as needed.
  • Optional: PLUG-SB50 Rigid Protective Plug/Cover with Lanyard.
Customer Reviews
Good but could be better By
This is a fantastic idea but after you mount the Anderson plug, there is very little room to bend the wire inside if you use thicker gauged wire. I bought 2 and I can't use them because I was going to run 8AWG pv wire and there is just not enough room to bend the wire.  If they made this another inch longer, no problem.  Maybe someone will read this and consider it.  The reason I wanted to use thicker wire is because I have a long wire run to get my panels out of the shade from my camper which requires the thicker gauge.  If you are using their Anderson plug rated for what it is, you need the thicker wire anyway.  The shell is very well made, so should last in the sun but it is way too small to really do anything on the inside.
Was this review helpful? Yes No (5/0)
