Picture of Powerwerx PanelPlateSW3 Blank Panel 3 Position with Circuit Breaker and Harness
Powerwerx PanelPlateSW3 Blank Panel 3 Position with Circuit Breaker and Harness
  • $24.99
  • In Stock
  • SKU: PanelPlateSW3

Powerwerx PanelPlateSW3 Blank Panel 3 Position with Circuit Breaker and Harness

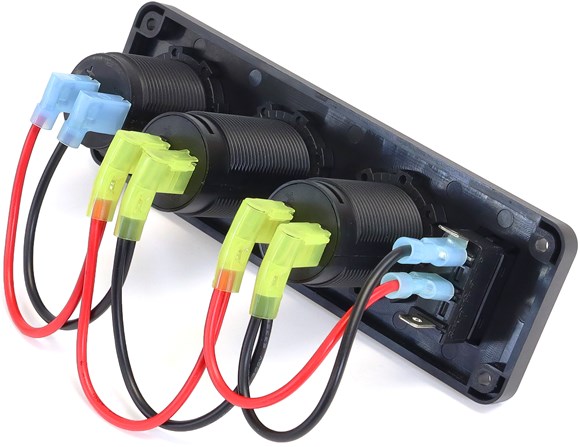

Allows endless Panel Mount configurations for your 12V systems. Compact panel includes integrated 15A circuit breaker switch to shut off panels, preventing parasitic draw. Two blank 1 1/8" panel holes to build with Powerwerx or Blue Sea Panel products. Includes pre-wired harness for easy installation. USB Chargers, socket sold separately. Read Full Description
$24.99
Availability: In Stock
SKU: PanelPlateSW3
GTIN: 840128919866
Be the first to review this product
The Panel Pate Switch series simplifies mounting your Panel Mount products. Connects to any 12V DC input source via (2) rear F2 faston tabs (blade type) connections. Ideal for all vehicles including: cars, buses, emergency vehicles, RV's and Overland applications. Also great for Battery Boxes and other 12V DC power applications.

On/Off Switch Prevents Parasitic Draw

The integrated On/Off switch can help limit parasitic draw of Panel Mounted devices including meters, USB Chargers, and other LED backlights and indicators.

Integrated Circuit Protection

In addition to being an On/Off switch, the illuminated Carling switch also acts as a thermal circuit breaker rated at 15A, protecting your panel mounted devices from over current.

Keyed for Easy Panel Mount Installation

Keyed openings allow for easy installation and orientation of most panel mounted receptacles. Flat sides also prevent excess receptacle rotation when tightening the rear locking nut.

Removeable Key Tabs for Fully Round Items

The panel plate switch series has recessed cut guides to allow full circular openings when needed. Can easily be removed with a box cutter or sharp blade.

Tech Specs

Operating Voltage12V DC Systems Only
Amperage Rating15A Max
Number of Panel Mount Holes3
CompatibilityMost Powerwerx and Blue Sea Panel Mounts (other panel mounts may require user modified harness)
Removable Key TabsYes

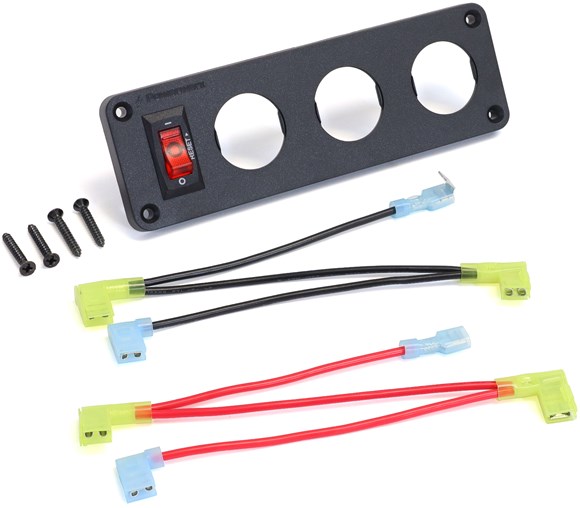

IncludesPlate with On/Off switch, wiring harness and mounting screws
Panel Size6.4" W x 2.1" H x 1.5" D
