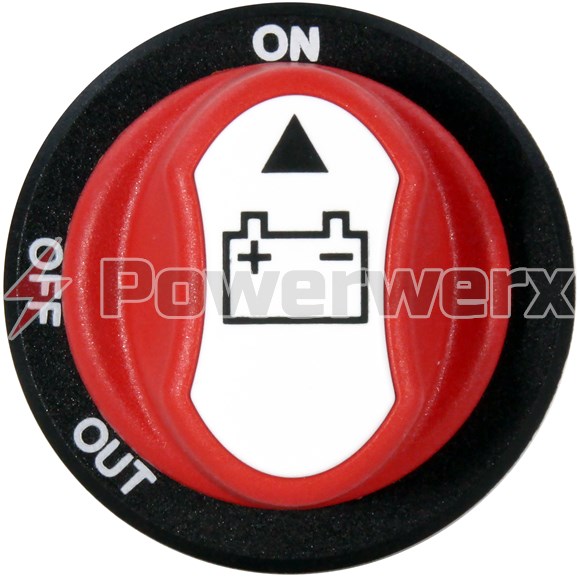

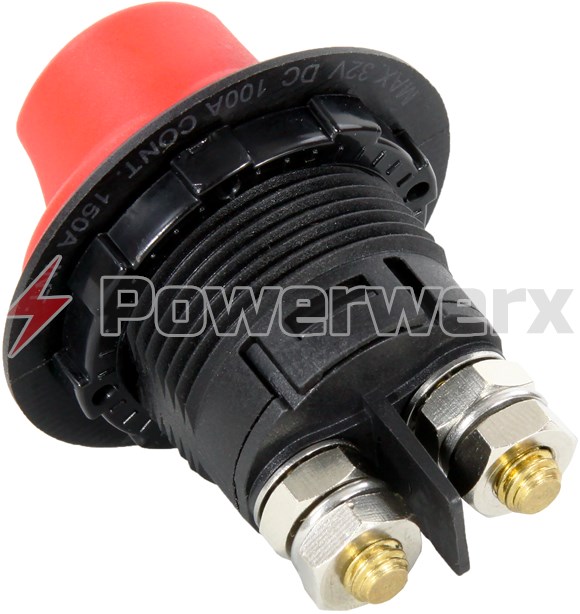

Powerwerx PanelHDSW-K Heavy Duty 100A Panel Mount ON-OFF Battery Switch with Removable Knob

Features

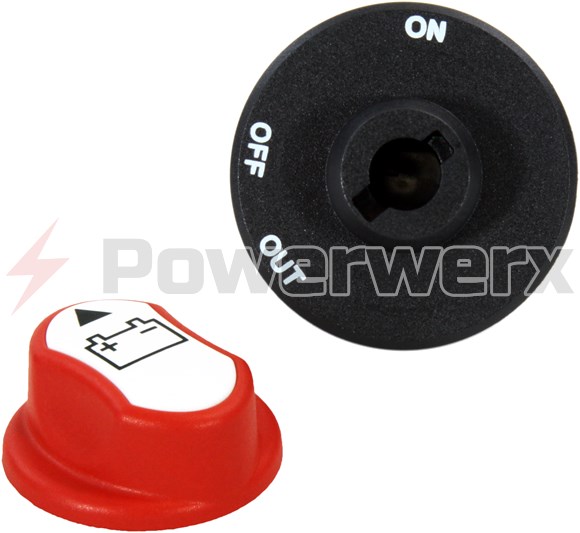

• Ultra compact battery disconnect with removable knob for security
• Selectable Battery (ON/OFF) Design
• Mounts in standard 1 1/8" Panel Mount Hole

Specifications

• Switch Type: 3 Position (Single circuit ON / OFF / Knob Out)
• Amp Rating: 100A Continuous Rating (125A intermittent / up to 1 minute)
• Max Voltage: 32 VDC
• Mounting: 1 1/8" Standard Panel Mount Hole
• Rear housing depth: 1 1/2" (including terminal studs)
• Terminal Stud Size: 1/4"
• Battery Inputs: 1 (ON/OFF)
• Overall Dimensions: 2 1/8" L x 1 3/8" W x 1 3/8" H (including rear lock nut)
• Dimensions behind mounting Plate: 1 1/4" L x 1 3/8" W x 1 3/8" H (including rear lock nut)
• Weight: 0.65 lb

Note: If using this product with any of the optional panel plates, this product's flange is slightly larger and will overhang over the edge of the panel plate.
