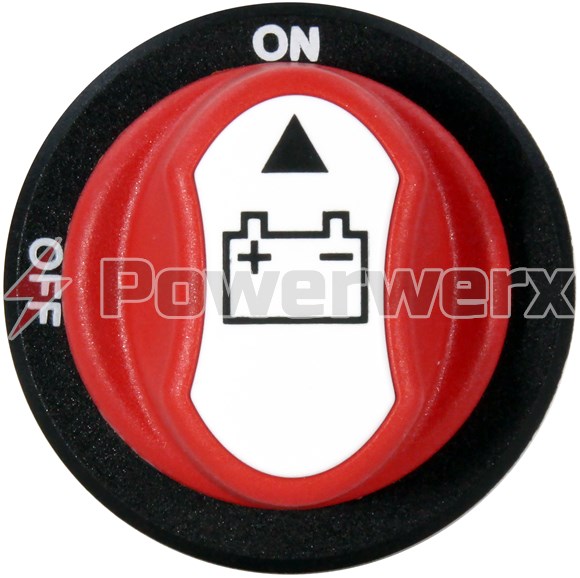

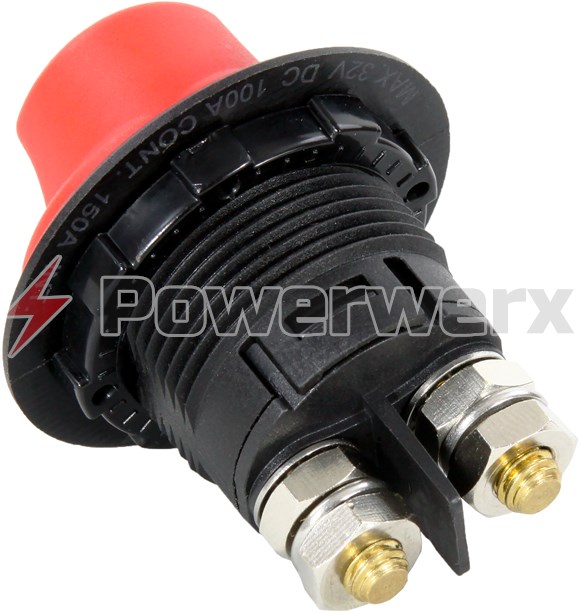

Picture of Powerwerx PanelHDSW Heavy Duty 100A Panel Mount ON-OFF Switch
Powerwerx PanelHDSW Heavy Duty 100A Panel Mount ON-OFF Switch
  • $25.99
  • In Stock
  • SKU: PanelHDSW

Powerwerx PanelHDSW Heavy Duty 100A Panel Mount ON-OFF Switch

Compact Battery Disconnect Switch mounts into standard 1 1/8" panel mount hole. Single circuit ON-OFF switch is rated up to 125A. Read Full Description
$25.99
Availability: In Stock
SKU: PanelHDSW

Features

  • Ultra Compact Battery Disconnect, easy to Install
  • Selectable Battery (ON/OFF) Design
  • Mounts in standard 1 1/8" Panel Mount Hole

Specifications

  • Switch Type: 2 Position (Single circuit ON / OFF)
  • Amp Rating: 100A Continuous Rating (125A intermittent / up to 1 minute)
  • Max Voltage: 32 VDC
  • Mounting: 1 1/8" Standard Panel Mount Hole
  • Terminal Stud Size: 1/4"
  • Battery Inputs: 1 (ON/OFF)
  • Overall Dimensions: 2 1/8" L x 1 3/8" W x 1 3/8" H  (including rear lock nut)
  • Dimensions behind mounting Plate: 1 1/4" L x 1 3/8" W x 1 3/8" H (including rear lock nut)
  • Weight: 0.65 lb

Note: If using this product with any of the optional panel plates, this product's flange is slightly larger and will overhang over the edge of the panel plate.
