Connects to any 12/24V DC input source via rear mounted F2 faston tab (blade type) connections. Ideal for all vehicles including: cars, buses, emergency vehicles, Sprinter Vans, RV's and Overland applications. Compatible with most mobile devices including Apple and Android products.
All black body with no LED lights for OEM installations that demand a clean and modern look
The QC4.0 USB Type-C is capable of high output wattages for charging smartphones, tablets, and even laptops. Higher input voltages allow the USB Type-C to output upwards of 60W.

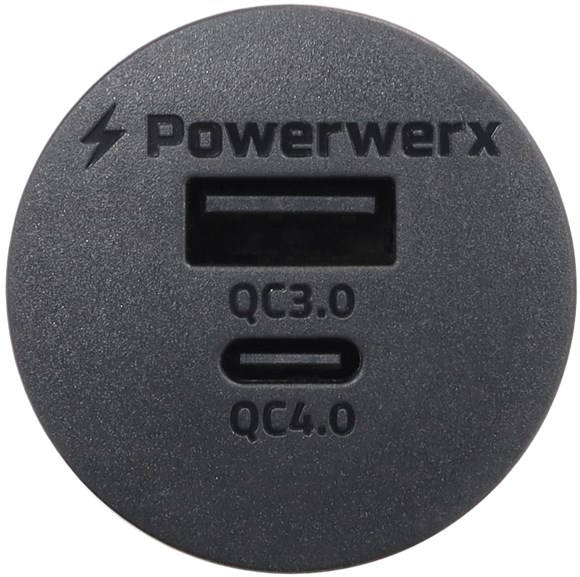

Combination USB QC3.0 and USB Type-C QC4.0 fast device charger with support for multiple fast charging protocols including: Qualcomm QC4.0, Qualcomm QC3.0, Qualcomm QC2.0, Apple 2.4A, Samsung Adaptive Fast Charging (AFC), Huawei Fast Charging Protocol (FCP), Huawei SuperCharge Protocol (SCP), and PD3.0 PPS (27W/36W/48W/60W).
The included weather tight protective cover seals the USB's when not in use. Heavy duty environmental protective cover has a double seal to keep out unwanted moisture and debris. Raised texture grip enables easy removal of the cover.
|Operating Voltage||9-32 V|
|QC3.0 Output||5-12V DC (18W Max)|
|QC4.0 Output (With Input of 9.0 to 11.9V DC)||Up to 27W|
|QC4.0 Output (With Input of 12.0 to 14.9V DC)||Up to 36W|
|QC4.0 Output (With Input of 15.0 to 19.9V DC)||Up to 48W|
|QC4.0 Output (With Input of 20.0 to 32.0V DC)||Up to 60W|
|Terminals||1/4" Nickel Plated Blades|
|Panel Mount Length||2.5 in|
|Mounting||Fits 1-1/8" hole size|
|Operating Temperature Range||-4 to +176 °F (-20 to +80 °C)|
|Over Voltage Protection||Yes|
|Over Current Protection||Yes|
|Over Temperature Protection||Yes|
|Short Circuit Protection||Yes|
|Reverse Polarity Protection||Yes|
|Includes||Protective dust cap cover and rear mounting/locking nut|
|Recommend Installation||Use IFH-18-02 inline blade fuse holder with 7.5A fuse on 12/24V input|
NOTE: Included dust cover does not work with PanelPlate1, PanelPlate2, PanelPlate3, PanelPlate4, PanelPlate4W, PanelPlate6, PanelPlateSB2, and PanelPlateSB3. The dust cover will need to be removed when using these mounting plates.
