Picture of Powerwerx Panel Mount Segmented Digital Volt Meter with Graphic Racing Display
Powerwerx Panel Mount Segmented Digital Volt Meter with Graphic Racing Display
  • $13.77
  • In Stock
  • SKU: PanelVolt

Powerwerx Panel Mount Segmented Digital Volt Meter with Graphic Racing Display

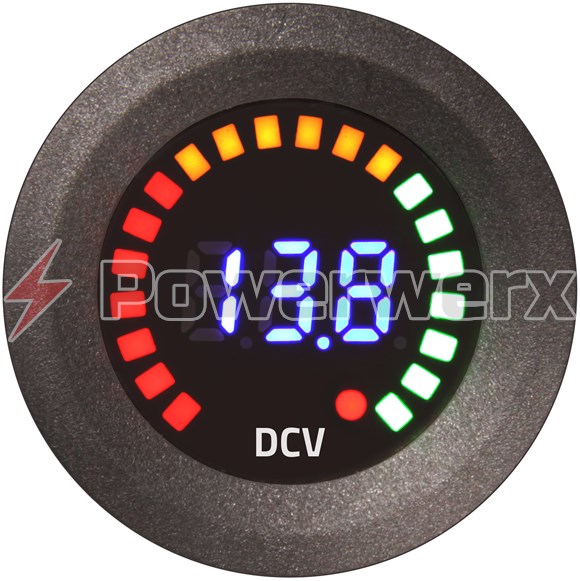

Racing style panel mount volt meter features a bright easy to read blue LED display with graphic voltage segment display on the faceplate outer edge. Monitor DC voltage from 6-16 VDC. Fits standard 1-1/8" diameter hole. Rear mounted F2 quick disconnect tabs. Read Full Description
$13.77
$27.99
Availability: In Stock
SKU: PanelVolt
GTIN: 840128902592

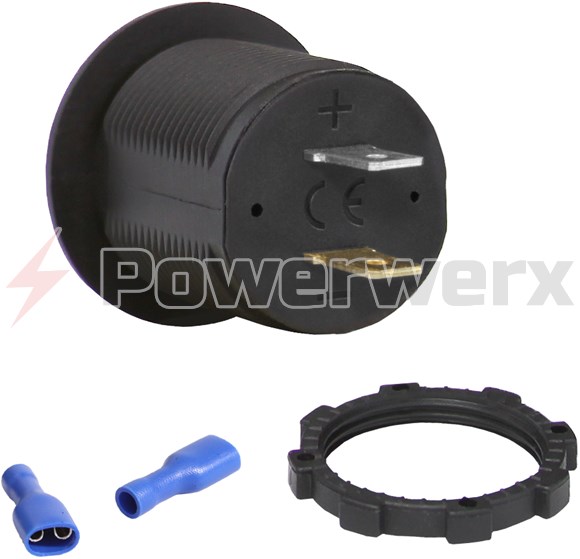

Monitor and display current battery voltage. Rear mounted F2 blade type connections. Can be mounted in Powerwerx optional PanelPod1, PanelPod2, PanelPod3 housings or standard 1-1/8" diameter hole.

  • Display Color: Blue LED
  • Additional Display: Graphic voltage segment display
  • Current Draw: 10 mA
  • Voltage Range: 6-16 VDC
  • Rear Connections: (2) 0.25" blade quick disconnect tabs
  • Rear housing depth: 1 1/2" (with quick disconnect tabs)
  • Mounting: 1 1/8" diameter hole
  • Optional Mounting: PanelPod1, PanelPod2, PanelPod3, PanelPlate1, PlanelPlate2, PanelPlate3 and Panelplate4
  • Warranty: 6 months
Customer Reviews
OK By
I am pleased with the display. Clear and precise. I tested it with 12v and it worked perfectly. I hooked it up to my 24v  the display now blinks on and off.  The display is supposed to work with up to 30v. I can  live with it, but would prefer a solid display.
Was this review helpful? Yes No (8/3)
Works and is accurate, but numeric display segments uneven. By
The numeric display has a significant variation in intensity. The leading "1" (as in 13.5) is noticeably brighter than the other two digits. The color band is fine and all segments match in intensity. I checked the accuracy against my DMM and it matches the voltage, so that is OK. Disappointed in the appearance.
Was this review helpful? Yes No (16/2)
Great gauge!! By
Awesome, accurate, looks great
Was this review helpful? Yes No (8/1)
