Picture of Powerwerx Panel Mount Combo Amp & Volt Meter for 12/24V Systems
Powerwerx Panel Mount Combo Amp & Volt Meter for 12/24V Systems
  • $34.99
  • In Stock
  • SKU: PanelAmp

Powerwerx Panel Mount Combo Amp & Volt Meter for 12/24V Systems

Easy to install panel mount combination amp & volt meter features a bright easy to read blue LED display. Monitor DC voltage from 6-30 VDC and 1-15 amps simultaneously. Fits standard 1-1/8" diameter hole. Rear mounted F2 quick disconnect tabs. Read Full Description
$34.99
Availability: In Stock
SKU: PanelAmp
GTIN: 840128902301

The compact PanelAmp meter features a dual LED display for amps & volts in a single panel sized hole. Built-in internal shunt.

  • Voltage: 6-30 VDC
  • Amps: 1-15A @12VDC

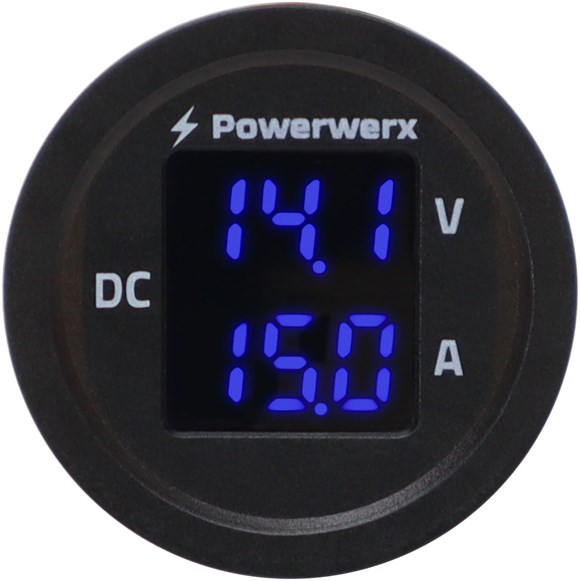

  • Display: Blue color Dual LED display
  • Function: Simultaneously monitor amps & volts

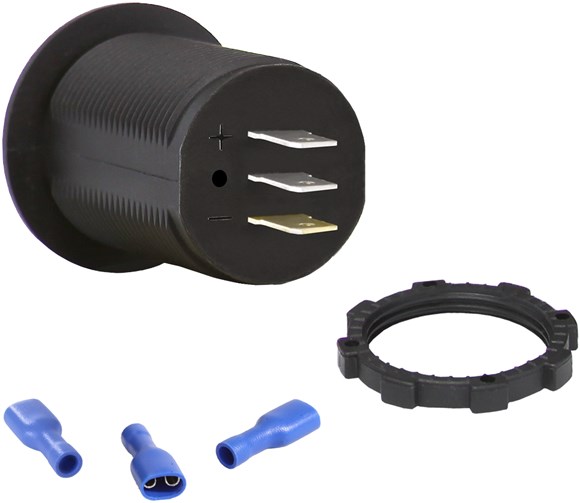

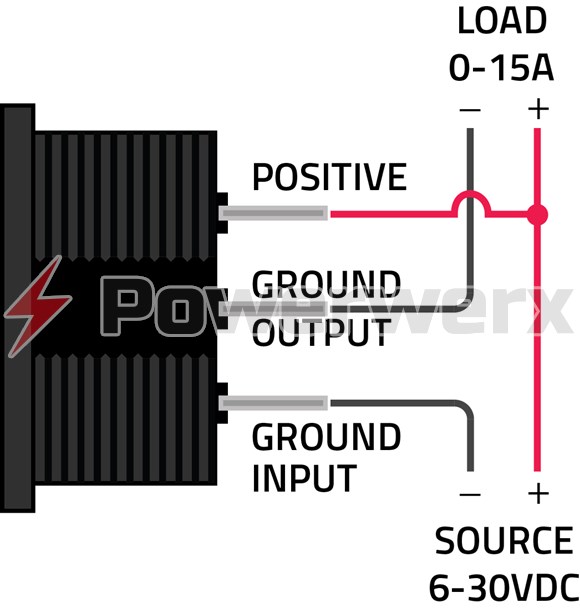

  • Rear Connections: (2) 0.25" blade quick disconnect tabs
  • Hole Diameter: 1 1/8" size
  • Rear housing depth: 1 7/8" (with quick disconnect tabs)
  • Standby Current Draw: 10mA
  • Accuracy Volts: +/- 0.2 volts @ 14 VDC
  • Accuracy Amps: +/- 0.15 amps
Customer Reviews
Hard to read in daylight conditions By
Almost impossible to read during daylight without covering with your hand to create a shadow.   Otherwise, it functions fine.
Was this review helpful? Yes No (14/2)
Perfect Amp/ Volt Meter By
These are a perfect Amp/Volt meter we use for our Basic Solar + Storage "BugOut" systems. Our simple PWM solar charge controller has a max of 10 Amps on the load side of the controller and this is where we install the meter in a simple enclosure. It gives our customers the ability to see the battery voltage and keep track of how many Amps they are drawing through the protected load circuit. We have tested this meter for over 2 years and still performs as advertised.
Was this review helpful? Yes No (7/0)
Limited for 12 volt power systems By
Just purchased the combo volt/amp digital meter and found when opening the package (not reading prior to purchase), amp rating is only 15 amps! I am setting up all my gear on 12v which will have a potential needed amperage of close to 30amps on full transmit! May have to return and hope that Powerwerk will come up with a higher capacity meter! I do like the size and mounting system, great system otherwise.
Was this review helpful? Yes No (22/8)
Good but note amp rating By
Good product with easy wiring and no external shunt. I just wish the amp rating was higher. Also, the ammeter is not particularly accurate below 1A. But it is precise (readings don't fluctuate), and it offers a lot of functionality in a small package.
Was this review helpful? Yes No (17/2)
Great but limited. By
This is a good switch for 50W radios but the 15A current limit is too low. 100w radios require 25A current. Would like to see higher current options on this switch and current meters.
Was this review helpful? Yes No (94/11)
