Powerwerx Panel Mount Blue Switch for 12V Systems
  • $9.99
  • In Stock
  • SKU: PanelSW-Blue

Powerwerx Panel Mount Blue Switch for 12V Systems

Easy to install backlit panel mount On/Off DC power switch. Available in red and blue colors. Rated at 15A @ 12VDC. Rear mounted F2 faston blade type connections. Fits standard 1-1/8" diameter hole. Read Full Description
Availability: In Stock
SKU: PanelSW-Blue
GTIN: 840128902516

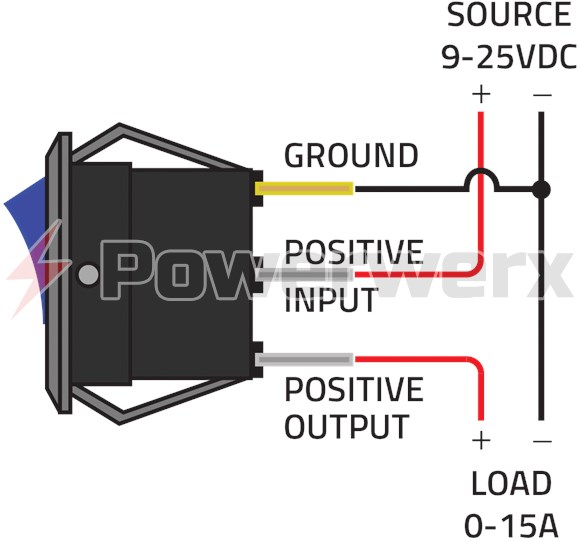

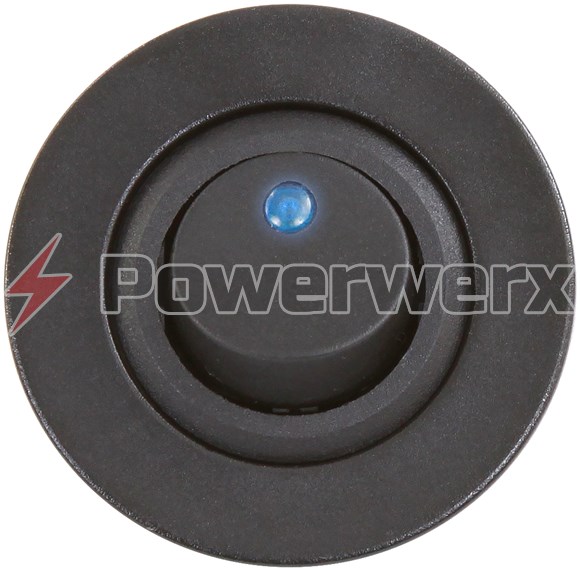

Switches illuminates in the ON position. Rated at 15A @ 12VDC continuous. DC power input via (3) rear mounted F1 faston tab (blade type) connections.

Switch separates from panel housing and can be mounted separately or together. When mounted separately the switch fits in a 25/32" hole. Fits Powerwerx optional PanelPod1, PanelPod2, PanelPod3 housings, Two, Three or Four Hole Panel Mounting Plates or standard 1-1/8" diameter hole.

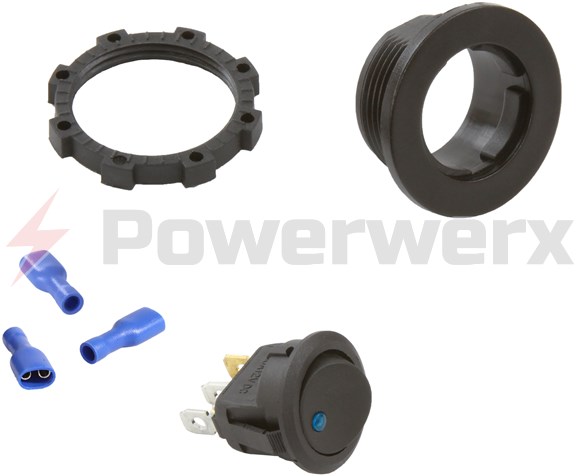

Includes lighted switch, panel mount switch housing, rear threaded nut and (3) blade type connectors.

Current Draw: 15mA

Rear housing depth: 15/16" (with quick disconnect tabs)
