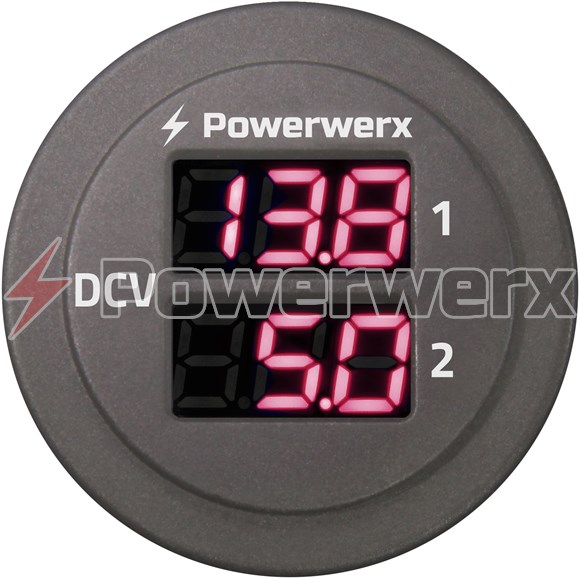

Powerwerx Panel Mount Dual Digital Red Volt Meter for 12/24V Systems
  • $29.99
  • In Stock
  • SKU: PanelDualVolt

Powerwerx Panel Mount Dual Digital Red Volt Meter for 12/24V Systems

Displays 2 battery bank voltages simultaneously. Features a bright easy to read red LED display. Monitor DC voltages from 6-30 VDC. Fits standard 1-1/8" diameter hole. Rear mounted F2 faston tab connections. Read Full Description
$29.99
Availability: In Stock
SKU: PanelDualVolt
GTIN: 840128902325

Monitor and display 2 battery bank voltages simultaneously. Three rear mounted F2 faston tab (blade type) connections. Can be mounted in Powerwerx optional PanelPod1, PanelPod2, PanelPod3 housings or standard 1-1/8" diameter hole.

  • Display Color: Red LED
  • Voltage Range: 6-30 VDC
  • Current Draw: 10 mA
  • Mounting: 1 1/8" diameter hole

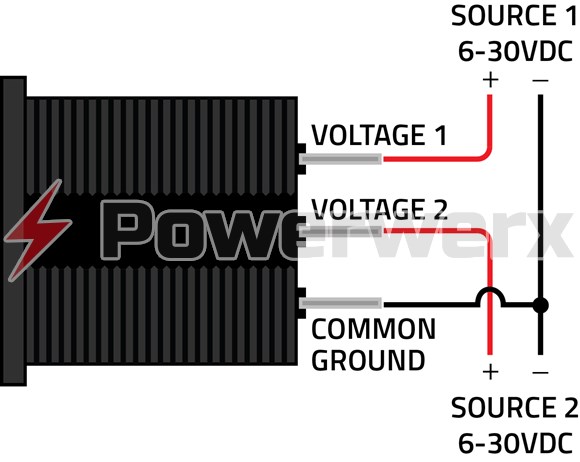

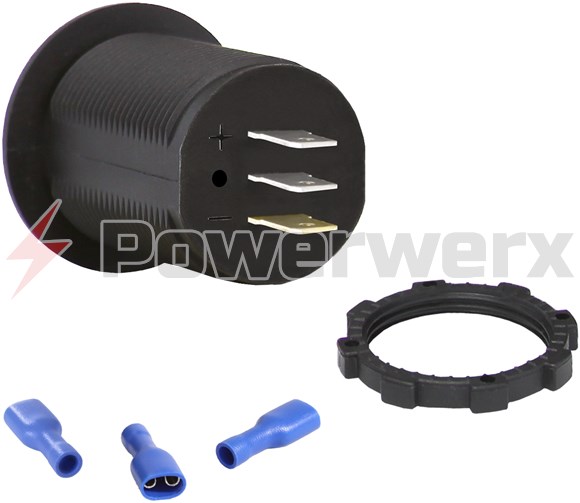

  • Rear Connections: (3) 0.25" blade quick disconnect tabs (Voltage 1, Voltage 2 & Ground)
  • Rear housing depth: 1 7/8" (with quick disconnect tabs)
  • Unit is powered by Voltage 1 tab
  • Warranty: 6 months
Customer Reviews
Works for common ground By
Works well if you're monitoring say... two 12V battery banks sharing the same ground line, but if this was meant to monitor say.... PV voltage and the battery bank being charged by a charge controller it will not only give you weird results but will actually hamper normal operation of the charger.

It would be awesome to find one where it features two separate voltmeters with separate grounds.
