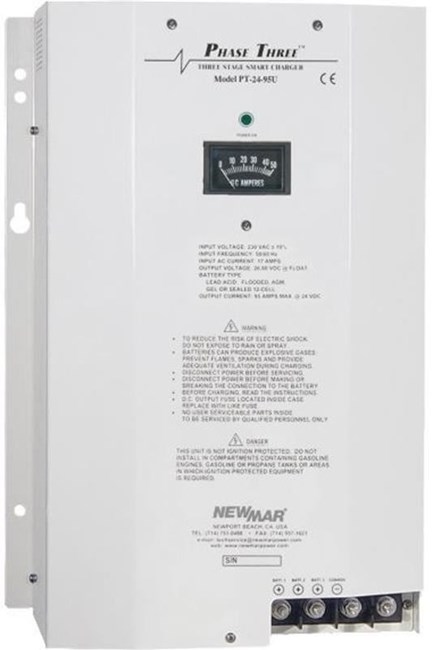

Newmar PT-24-95U Phase Three PT Series Battery Charger (Volts: 24, Amps: 95)

“Smart” marine battery charging technology for 24 volt systems aboard, workboats, military vessels, commercial vessels, and recreational craft. These chargers interact with batteries providing the optimum three stage charge process for fast recovery and conditioning, maximizing performance and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell/flooded lead-acid/AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.

• “Smart” circuitry provides three stage charging – bulk, absorption, float
• Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
• Multiple isolated output banks; ammeter indicates total output current
• Optional sensor adjusts output voltage based on battery temperature
• Current limiting-prevents damage from overloading
• Use as a power supply; can power loads without a battery in line
• Built to last – rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry
• Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
• Install in conjunction with PT-MCU for additional control and monitoring
• ABS type approval for battery charging and power supplies

Specifications:

Input VAC (50-60Hz.): 90-264

Input Amps @ 115/230: 26/14

Max Output Amps: 95

Output Banks: 3

Battery Capacity (Amp-Hours): 180-950
