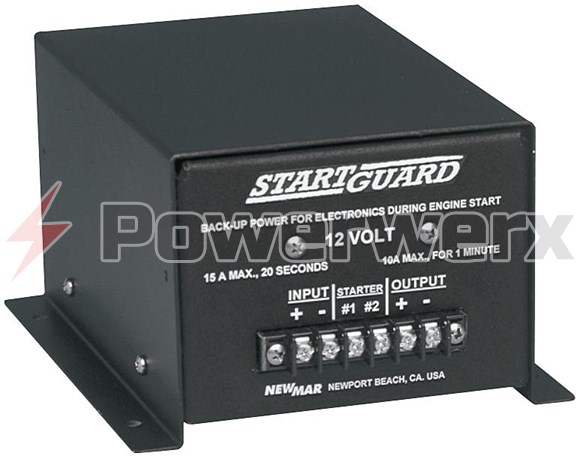

Newmar NS-12-20 StartGuard Provides Voltage Protection During Engine Start

The abrupt DC system voltage drop that accompanies engine starting can cause microprocessor-based voice and data transmitters to "dump" programmed memory.

StartGuard solves this problem by providing supplemental voltage to sensitive electronics while the engine is cranked. It contains a sealed rechargeable battery which is switched on-line to electronics when the starter switch or solenoid is engaged. When the engine is running StartGuard automatically goes off-lineand the internal battery is recharged by the alternator.

Specifications
Input Voltage: 13.8 - 14.8 VDC nominal, 15.5 VDC max.
Relay Activation Input Voltage: 7-15 VDC
Output: 20 amps max.
Battery: 12 VDC, sealed rechargeable, 5-7 year life (typical) 4 amp-hour capacity, Certified by DOT and IATA forshipment by air.
Back-up Capacity: (Fully Charged): 1 Minute = 20 amps, 2 Minutes = 18 amps
Dimensions: 8.25" H x 4.9" W x 3.5" D (20.1cm H x 12.5cm W x 8.9cm D)
Weight: 5.5 lbs. (2.5 kg)
