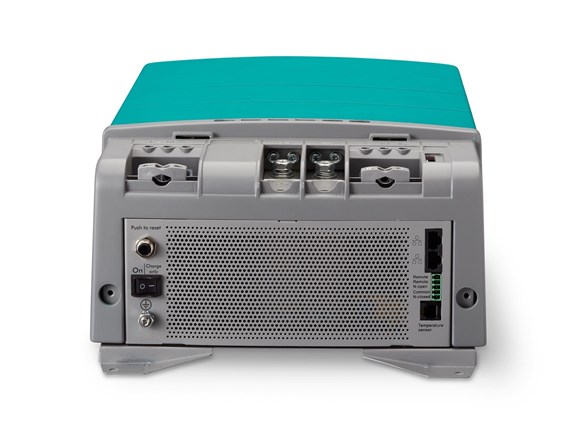

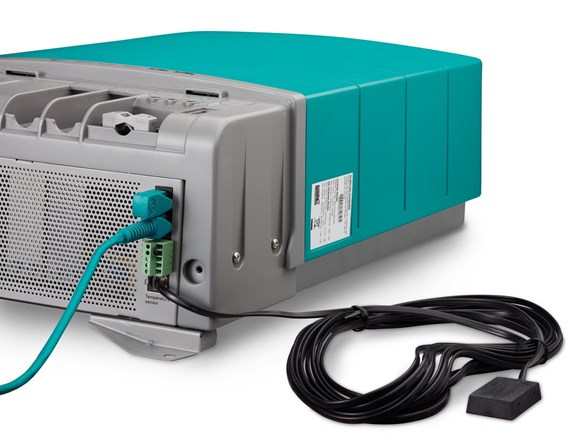

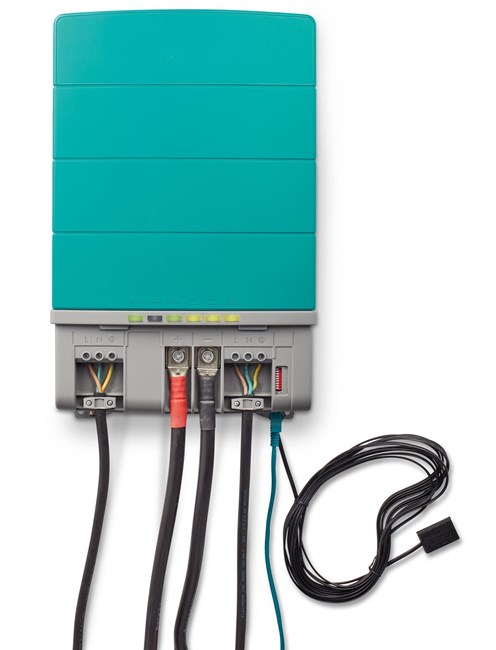

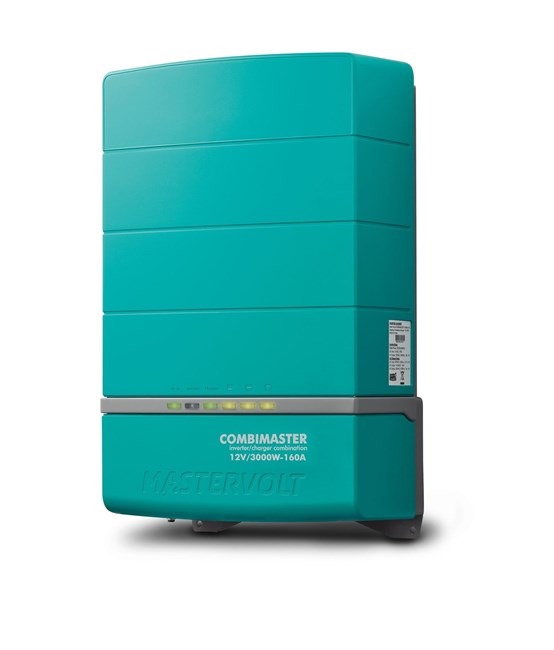

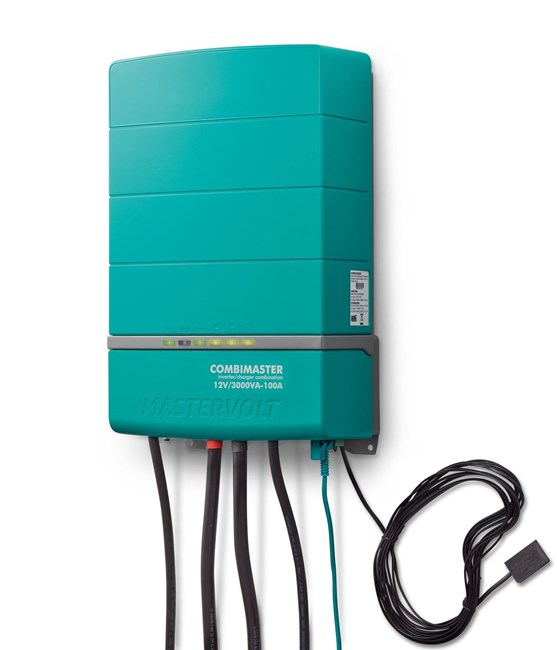

MASTERVOLT 35513000 CombiMaster12V/3000W-100A Pure Sine Inverter/Charger

Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease! The CombiMaster offers simple installation with multiple operating modes and various battery chemistries including Li-ion. Continuous Power Rating: 3000W, 4500W up to 30 seconds.

Remote Control and Monitoring Options

• MasterBus compatible via Smart Remote or EasyView 5 display
• CZone / NMEA 2000 compatible via Touch 5 or Touch 10 display
• NMEA 2000 compatible via 3^rd party multifunctional display

Features

• Surge Power Rating: 4500W (up to 30 seconds)
• AC Voltage/frequency: 230V – 50/60Hz (Pure Sign)
• AC Power Input: 25A switched
• AC Power Output: 38A
• Display/readout: LED Display
• Most compact and lightweight Combi in its class
• Reliable, hum-free and longer operation from your batteries
• Inverter Efficiency: 93%
• Max Charge Current: 100A @ 14.25 V (configurable)
• Inverter Type: Pure Sine (w/ Auto Transfer Switch)
• DC Input Range: 10.1 – 15.5 VDC
• Nominal DC Voltage: 12 VDC
• Intelligent 3-step+ smart battery charger for faster and safer charging
• Battery Types: Flooded, Gel, AGM and MLI configurable
• Recommended Battery Capacity: 300-800Ah (based on Gel batteries, may differ with other types)
• Temperature Range: 4°F to 140°F
• Transfer Time: 10ms
• Cooling: Variable fan design
• Dimensions: 17.6" x 11.2" x 6.1"
• Weight: 20.5 lbs
• Warranty: 2 Years
• Manufacture Model: 35513000
• Certifications: UL458 & Supplement SA/CSA C22.2, UL1741 no. 107.1KKK-A-1822F
