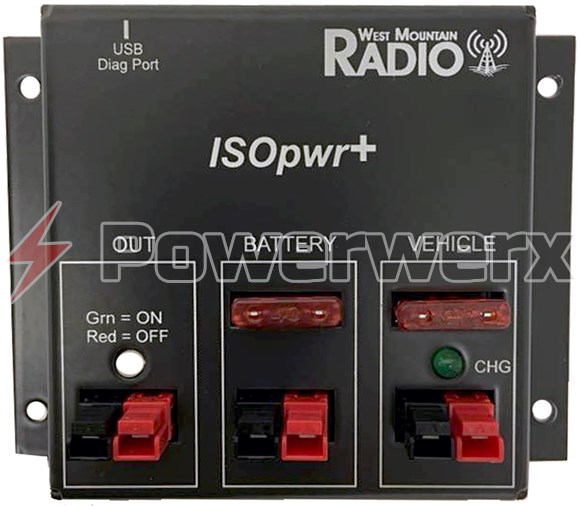

West Mountain Radio ISOpwr+ (Plus) Auxiliary Battery Isolator

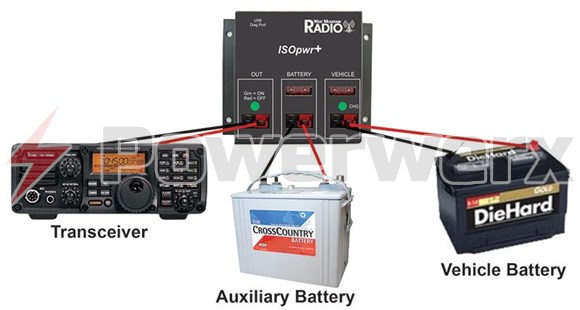

• Isolates and charges a 12 Volt auxiliary battery to run mobile radio and other 12 Volt portable equipment.
• Ideal for mobile radio command stations for ARES, RACES, FEMA, and for a VHF/UHF Contest Rovers, moderately powered ham equipment, a re-charging station for electric model airplanes, boats and cars, and for RV's and campers.
• Charging from vehicle starts when the car is running and the alternator is maintaining the car battery over 13.5 volts.
• Charging from vehicle stops when the alternator is off and the car's battery has fallen below 12.6 volts.
• All solid state. FET switch. No relays. Handles up to 40 amperes. Input fuse 40A.
• Works safely with all types of 12-volt lead-acid batteries, Flooded Lead Acid, Gelled & AGM.
• May be used without a battery to automatically turn a radio on whenever the car is running. The radio will turn off with a small delay after the car is stopped.

New Improvements

• PWRguard output shut-off when voltage is out of range
• USB port for setting operating thresholds and for monitoring
• Smaller and lighter weight enclosure
• Dimensions: 4.5" W x 3.4" L x 1.4" H

Specifications

• Operating Voltage: 20V maximum
• Quiescent Current: Less than 5mA
• Maximum Current: 40A
• Voltage Drop: 0.25V at 1A, diode drop
• Series Resistance: 0.01 ohms maximum
• Switch Time-Constant: 5 seconds
• Turn ON Threshold: 13.3 (+/- 0.1)V
• Turn OFF Threshold: 12.6 (+/- 0.1)V
• Green LED: Indicates the ISOpwr output is ON
• Dimensions: 4.5" W x 3.4" L x 1.4" H
• Weight: 0.35 lbs
• Enclosure: Aluminum case

Includes

• ISOpwr+ Unit
• Battery Fuse & Terminal Kit
• (4) Rubber Feet
• Owner's Manual
