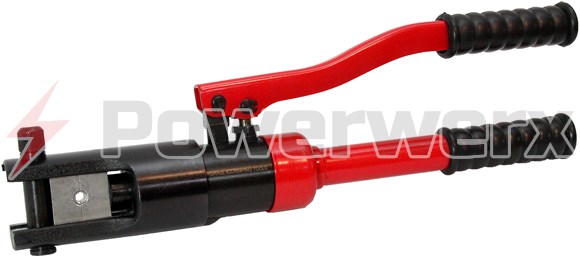

Picture of Hydraulic Crimping Tool for Large SB and Powerpole Contacts
Hydraulic Crimping Tool for Large SB and Powerpole Contacts
  • $249.99
  • In Stock
  • SKU: HYD-1

Hydraulic Crimping Tool for Large SB and Powerpole Contacts

The ideal Hex crimping tool for APP contact gauges 6, 4, 2, 1, 1/0, 2/0, 3/0 and 4/0. Features interchangeable dies for various size contacts providing a large range of crimps. The hand pump is easy to operate and provides positive crimping action. Read Full Description
$249.99
Availability: In Stock
SKU: HYD-1

The Hydraulic Crimping tool is not endorsed by Anderson Power Products®. Only official tooling solutions recommended by APP may be acceptable for safety agency approvals such as UL, CSA and TUV. Official tooling solutions are available for purchase at a higher price.

Operation:

  • Crimping Scope: 10 - 120mm (6 - 4/0 gauge)
  • Material: Copper/Aluminum
  • Max Working Pressure: 12T
  • Max Working Travel: 14mm (0.47in)

Physical dimensions and materials:

  • Weight: 3.2kg (7.1 lbs)
  • Overall Dimensions: 430mm x 120mm x 34mm (16.93in x 4.72in x 2.76 in)

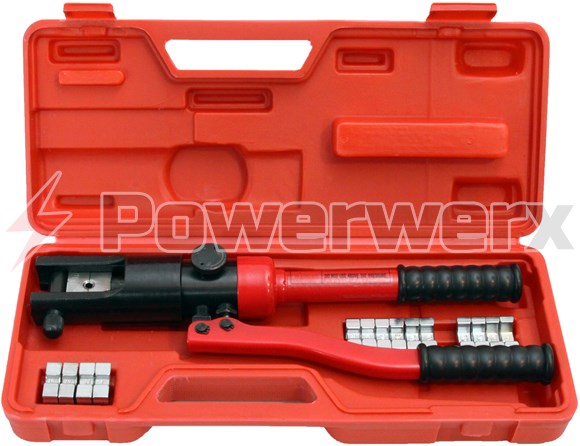

Included Hexagonal Dies:

  • 10, 16, 25, 35, 50, 70, 95, 120mm



Anderson Power Products HYD-1 Cross Reference Chart

Anderson SeriesAnderson Part NoWire GaugeHYD-1 Tool Die Number
PP75/SB505900610mm
PP75/SB505952810mm
PP75/SB5059151010mm
SB120/PP1201319235mm
SB120/PP1201319G4425mm
SB120/PP1201319G6635mm
SB175/PP18013821/0 35mm
SB175/PP1801347135mm
SB175/PP1801383235mm
SB175/PP1801384435mm
SB175/PP1801348616mm
SB3509171/035mm
SB3509072/070mm
SB3509163/070mm
SB3509084/0120mm

Powerpole® and SB® are registered trademarks of Anderson Power Products, Inc.
