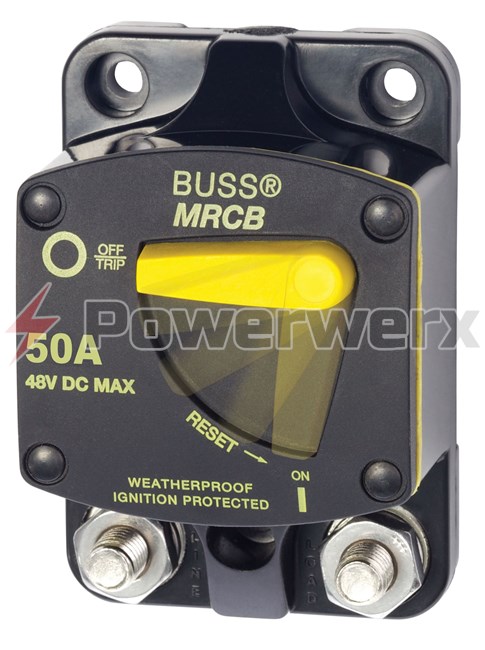

Eaton Bussmann 187F Series Resettable Waterproof Circuit Breaker Surface Mount, 50A

187 Heavy duty series Circuit Breakers are surface mountable and may be used in very wet environments. Robust 5/16" M8 terminals provide high torque connections. May be mounted in vertical or horizontal positions.

• Available in 50A, 60A, 80A, 100A, 150A and 200A sizes
• May be used in 6-48 VDC applications
• Combines switching and circuit protection into a single device
• Waterproof
• Operating Temperature from -40°F to 185°F
• Clear, single lever operation
• "Trip Free" design cannot be held "ON" during fault current condition
• Recessed mounting holes for clean appearance
• Large Clearance around terminal studs accept heavy gauge wire lugs
• Robust 5/16 M8 terminals provide high torque connections
• Large lever with vertical/horizontal orientation provides indication of trip status
• Ignition protected - Safe for installation aboard gasoline powered boats
• Meets SAE J1171 external ignition protection requirements
