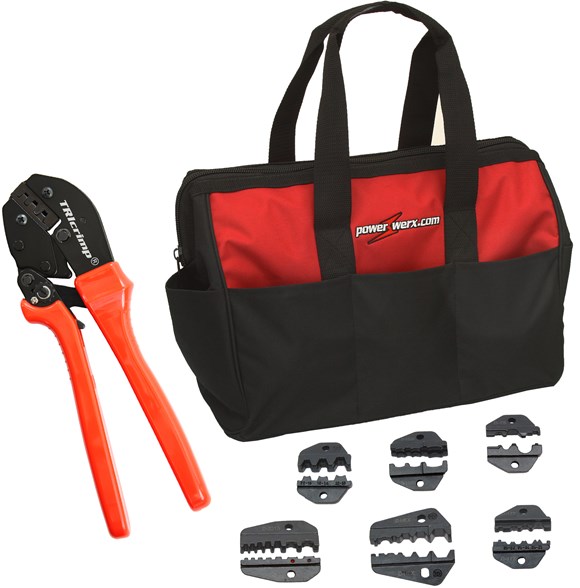

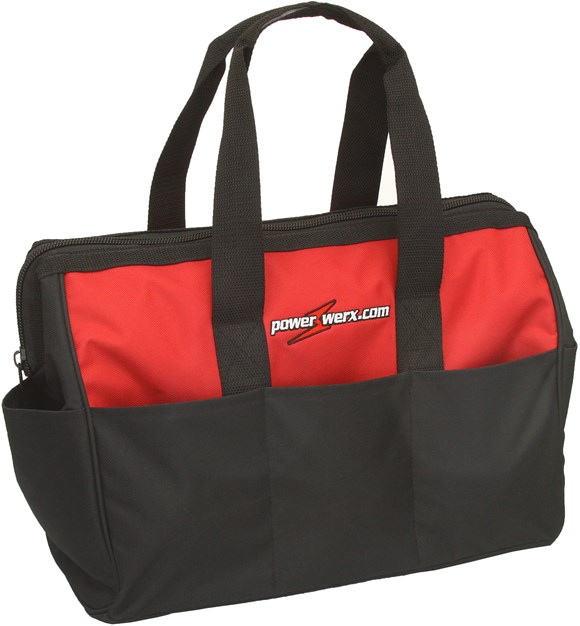

The CrimpBag is a high quality oversized nylon tool bag designed to hold all of your Powerpole gear. Makes a great "go" bag! Measures 12"W x 8"D x 11"H. Lined with pockets inside and outside, great for holding tools, radios, cables, connectors and more!

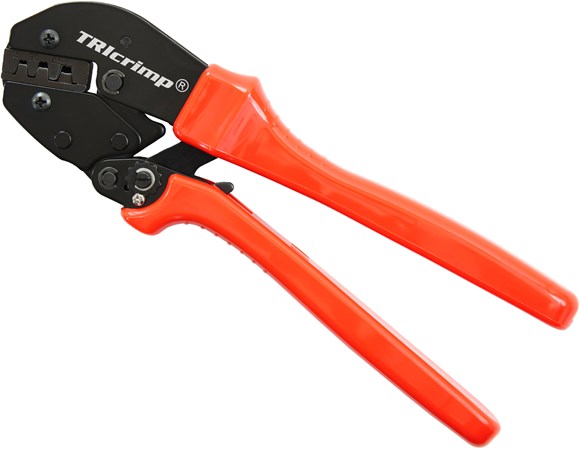

TRIcrimp Crimping Tool
The TRIcrimp® crimping tool was exclusively designed to provide a positive crimp on the 15, 30 & 45 amp contacts manufactured by Anderson Power Products for the Powerpole® line of products. It has the following features.
- Crimps all three sizes of Powerpole® contacts; 15, 30 and 45 amp
- Built-in contact positioner that holds the contact during crimping
- Ratchet mechanism assures proper crimps every time
- Far faster and better than soldering
- Provides the highest strength and the lowest resistance connections possible
- Dimensions: 7.75" X 3" X 1.5"
- Weight: 20 ounces
- High Contact retention force

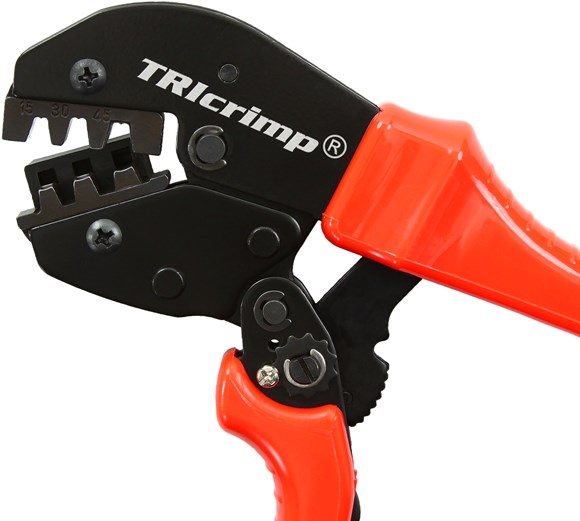

Contacts & Jaw Position
The 3 contacts have different amp ratings:
- 15 Amp (SKU: 1332) is designed to receive 16, 18 and 20 gauge wire.
- 30 Amp (SKU: 1331) is designed to receive 12, 14 gauge wire.
- 45 Amp (SKU: 261G2) is designed to receive 10 gauge wire.
The contact size corresponds to the position marking on the die. The 15 amp contact goes into the 15 amp position, the 30 amp into the 30 position, and 45 amp into the 45 position.
Assembly Instructions 15 & 30 Amp
To crimp the 15 & 30 amp contacts it is recommended that you insert the wire into the contact prior to inserting them into the tool. Then, with the flat side of the contact down, insert the contact tip into the proper slot for crimping.
Squeeze the ratchet handle until the ratchet mechanism releases. Do not over crimp by squeezing the handles together until they touch, it is possible to break the die.

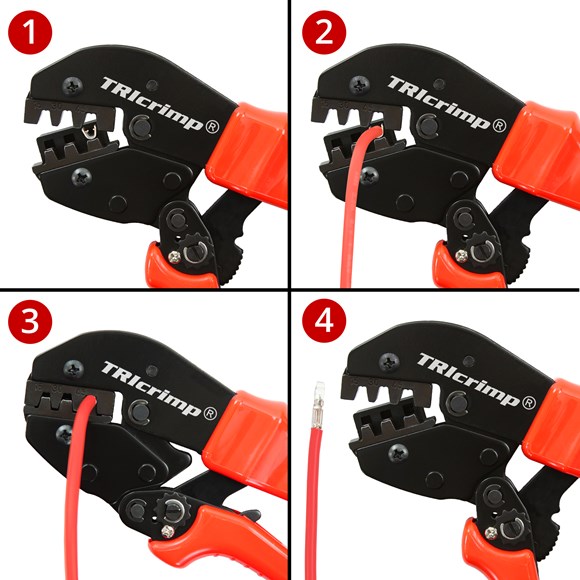

Assembly Instructions 45 Amp
To crimp the 45 amp contact it is recommended that you position the tip of the 45 amp contact into the 45 amp position slot before the wire is inserted. Make sure the contact is properly positioned with the U (open contact) facing up. If the contact is lying sideways you may not obtain a proper crimp. Then, insert your wire into the inserted contact.
Squeeze the ratchet handle until the ratchet mechanism releases. Do not over crimp by squeezing the handles together until they touch, it is possible to break the die.
Warranty:
The Powerwerx support policy is simple: we want you to be happy! If you have a problem, please feel free to contact us and we will do our best to get you up and running as soon as possible.
The TRIcrimp® has a one-year limited warranty. We will repair or replace your TRIcrimp® if you encounter any problems within one year of purchase. We reserve the right to charge a reasonable fee for repairing units with user-inflicted damage. It is your responsibility to ship the defective unit back to Powerwerx. We will pay for the replacement shipping to you. We reserve the right to upgrade your equipment to an equivalent or better model.
TRIcrimp® is a registered trademark of Powerwerx.

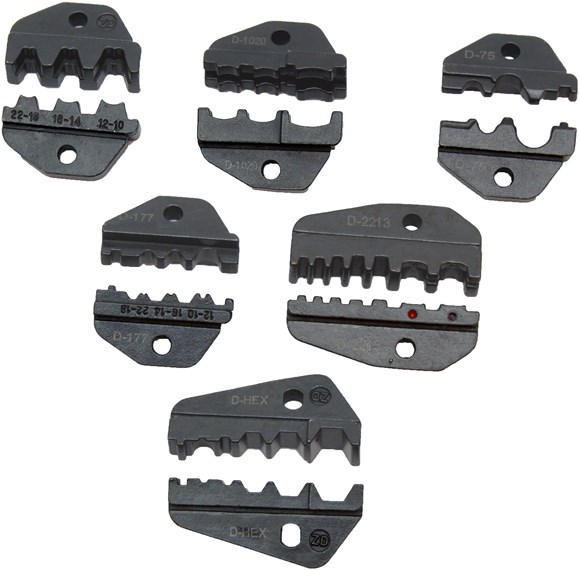

Interchangeable Accessory Die Sets
This 6 die set package contains 6 Interchangeable accessory die sets for the TRIcrimp tool listed blelow.
TRIcrimp die sets will not fit or work with any other brand of tool.
D-OEM
This die performs the same function as our separate CT-OEM tool but configured to fit the TRIcrimp handle. Crimper designed for OEM-T power source and radio side connectors. Also works with other OEM HF/VHF connector contacts (Powerwerx SKUs: HF2, HF3, HF4, HF6 and mating radio side contacts).
D-75
This die performs the same function as our separate CT-75 tool but configured to fit the TRIcrimp handle. Crimper for 75 amp Powerpole and 50 amp SB Series contact numbers 5900 and 5952. Recommended for 6 and 8 gauge contacts. Can also be used for large solderless terminals.
D-HEX
Hex crimp tool for crimping various sizes of Coaxial cable connectors. The dies can work with but not limited to: RG- 58, 59, 62, 5, 6, 21, 140, 141, 142, 143, 210, 222, 223, 303, 304, Belden 8279, 8281, 9231, 9141
D-177
Non-insulated terminals from 7 AWG to 17 AWG dies custom made to fit the TRIcrimp handle.
D-1020
Excellent for Insulated terminals from 10 AWG to 20 AWG dies custom made to fit the TRIcrimp handle.
D-2213
Excellent for Insulated terminals and end sleeves from 10 AWG- 22 AWG custom made to fit the TRIcrimp handle.
TRIcrimp® is a registered trademark of Powerwerx. Powerpole® and SB® are registered trademarks of Anderson Power Products, Inc.
