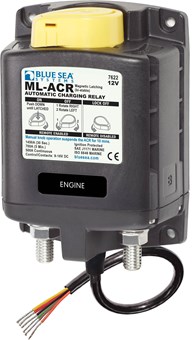

Picture of Blue Sea 7622100B ML-ACR Automatic Charging Relay for Auxiliary Batteries with Deutsch DTM Connector 12V/500 Amps
Blue Sea 7622100B ML-ACR Automatic Charging Relay for Auxiliary Batteries with Deutsch DTM Connector 12V/500 Amps
  • $174.99
  • In Stock
  • SKU: BS7622100B

Blue Sea 7622100B ML-ACR Automatic Charging Relay for Auxiliary Batteries with Deutsch DTM Connector 12V/500 Amps

Battery separator acts as a smart switch to connect independent battery banks only when charging voltage is present. Otherwise, batteries are isolated and discharge between banks is prevented. Ideal for adding an auxiliary battery to your main battery. Read Full Description
$174.99
Availability: In Stock
SKU: BS7622100B

The BS7622100B is the same as the BS7622 except it does not include a remote toggle switch. But, it does include a pre-wired Deutsch DTM connector on the control cable. The BS7622100B enables charging of two separate banks without voltage drop, yet maintains 100% isolation at all other times. Voltage sense circuit, epoxy encapsulated and heavy duty continuous rated all designed for use in emergency vehicle and marine environments. Includes pre-installed Deutsch connector for easy hook up.

Automatic and Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing. 500 Amp continuous rating Magnetic Latch (ML)-ACR draws very low current (Start Isolation (SI)-Can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics. Senses charging on two battery banks and supports high-output alternators up to 500 Amps. LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, in Start or Engine isolation 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance 7/8" (22mm) stud length accepts multiple cable terminals Label recesses for circuit protection Silver alloy contacts provide high reliability for switching live loads.

  • Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing
  • Optional Blue Sea 2146 Contura Switch available for remote operation
  • Automatically manages the charging of two large battery banks
  • Allows temporary paralleling of battery banks for emergency starting
  • 500 Ampere continuous rating to support high-output alternators
  • Magnetic Latch (ML)—ACR draws very low current (<40ma)
  • Dual sensing—senses charge on both battery banks
  • Start Isolation (SI)—can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
  • Senses charging on two battery banks
  • LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7/8" (22mm) stud length accepts multiple cable terminals
  • Silver alloy contacts provide high reliability for switching live loads
  • Label recesses for circuit identification


Specifications:

  • Includes: Pre-installed Deutsch DTM connector on control cable
  • Options: Blue Sea 2146 Contura Switch for remote control
  • Battery Connect Point: 13.1 VDC (approx.)
  • Battery Disconnect Point: 13.0 VDC (approx.)
  • Maximum Continuous Current: 500 amps
  • Peak Maximum Current: 1000 amps
  • Operating Temperature: Control: -40 to +85° C / Solenoid: -28 to +48° C
  • Terminals: Battery Connections: 3/8" plated copper studs
  • Maximum Cable Size: 4/0 x 2
  • Dimensions: 5.5" x 3.75" x 2" (H x W x D)
  • Weight: 1.75 lbs
  • Approvals: CE Marked
  • Warranty: Lifetime
