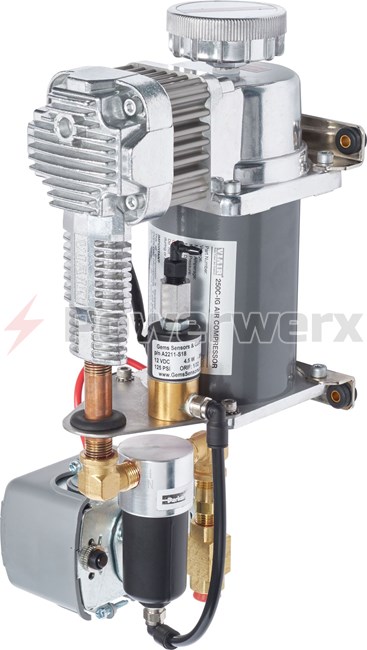

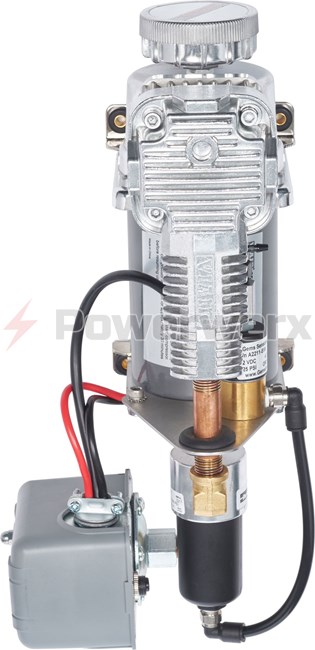

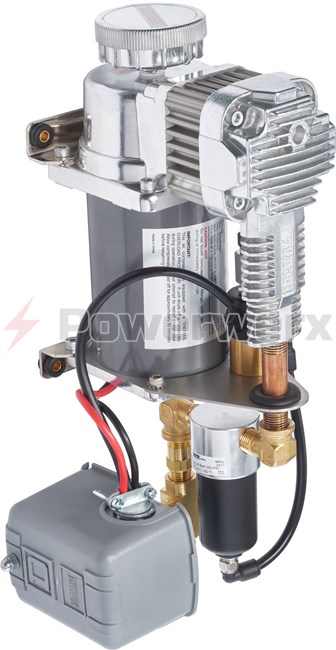

Blue Sea 7921 Air Brake Compressor Vertical Mount

Features

• Automatically maintains air brake system at ready status
• Industrial grade compressor provides reliable, long term operation
• Built-in Automatic overheat thermal protection
• Automatic Operation: Auto ON at 95 PSI, Auto OFF at 125 PSI
• Easy installation, no mounting plate required
• Integrated vibration dampening mounts
• User serviceable air filter and water separator filter
• Works in conjunction with engine driven compressor
• Integrated auto drain to protect your air system

Specifications

• Nominal Voltage: 12V DC
• Maximum Current Draw: 11A max @ 12 VDC
• Minimum Operating Temperature: 40 Degrees F
• Maximum Operating Temperature: 150 degrees F
• Overheat Protection: Thermal (Auto resets after 30 minutes)
• Mounting: Vertical
• Air Outlet: Female 1/4" NPT
• Factory ON/Off Threshold: Auto ON: 95 PSI, Auto OFF: 125 PSI
• Flow Rate: 0.88 CFM @ 0 PSI
• Motor Type: Permanent Magnet
• Dimensions: 13.5" x 6.20" x 6.5" (L x W x D)
• Weight: 9.2 lbs
• Warranty: 1 Year
