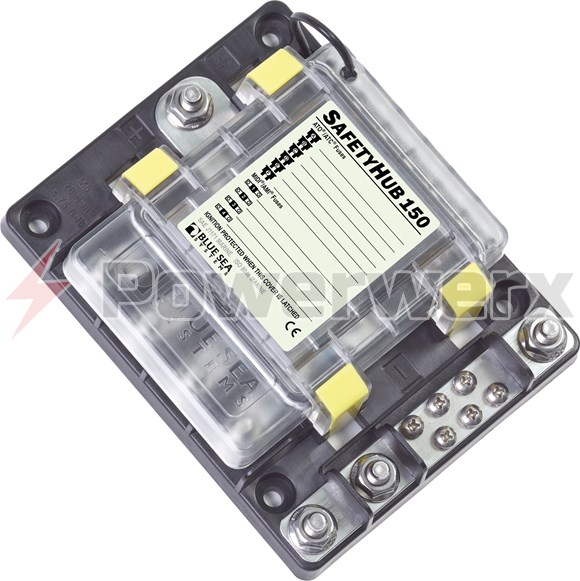

Blue Sea 7748 SafetyHub 150 Fuse Block

Ignition Protected Fuse Block with four MIDI and six ATO Fuse Circuits with Negative Ground. Read Full Description
$125.99
Availability: In Stock
SKU: 7748-BSS
GTIN: 632085077488

An ignition protected fuse block with screw termination safe for use on gasoline powered vehicles and boats

  • Accepts four AMI® or MIDI® Fuses for high-amp circuits up to 200A
  • Accepts six ATO® or ATC® Fuses for circuits up to 30A including bilge pumps, electronics and lights
  • Sealed cover protects fuses from the harsh marine environment and satisfies ABYC/USCG insulation requirements
  • Negative bus provides common location for negative connection
  • Circuit identification label with write-on capability
  • Fuse puller easily removes ATO® or ATC® Fuses

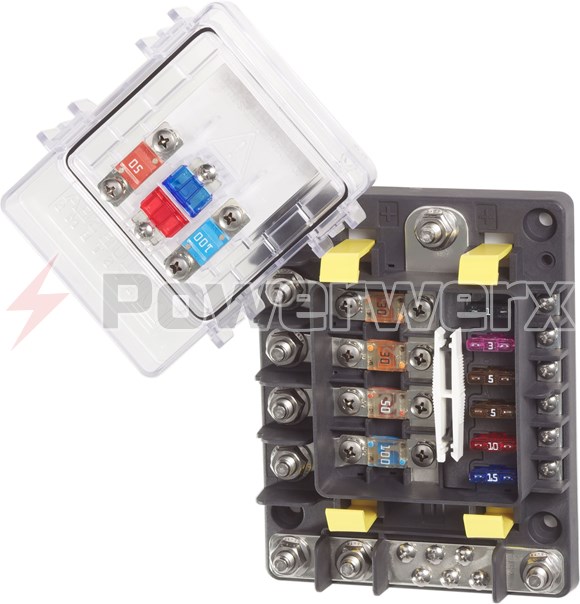

  • Cover provides storage space for two spare ATO® or ATC® and two spare AMI® or MIDI® fuses and mounting screws
  • One-piece stainless flange nuts ensure safe and secure connections
  • Fuses sold separately

Specifications:

  • Number of Fused Circuits: 10 Total (4-MIDI/AMI, 6-ATO/ATC)
  • Operating Voltage: 12V / 24V / 32V DC
  • Maximum Amperage Operating Combined: 200A / 300A / 600A
  • Stud Size: M8 x 1.25
  • Terminal Screw Size: 8-32
  • Dimensions: 6.50" L x 5.08" W x 1.88" H (w/ protective cover installed)
  • Weight: 3.50 lbs
