Picture of Blue Sea 7720 AMI MIDI Safety Fuse Block
Blue Sea 7720 AMI MIDI Safety Fuse Block
  • $27.99
  • In Stock
  • SKU: BS7720

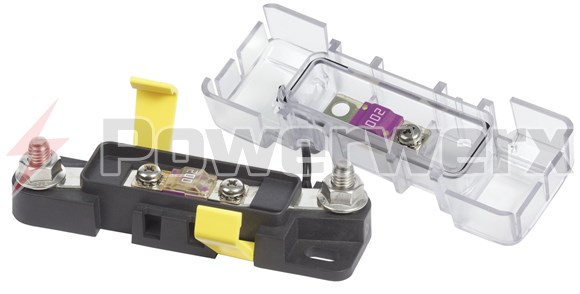

Blue Sea 7720 AMI MIDI Safety Fuse Block

Ignition protected for installation on gasoline or diesel vehicles/boats. 200A maximum rating using up to 4/0 size cable. Requires optional AMI / MIDI fuses which are sold separately: Available fuse sizes are: BS5251 (40A), BS5253 (60A), BS5255 (80A), BS5258 (150A). Read Full Description
$27.99
Availability: In Stock
SKU: BS7720
GTIN: 632085077204
  • Safety Fuse Block provides high current protection with sealed cover for harsh environments
  • Ideal circuit protection for DC Main, inverters and other high DC power devices
  • Cover breakouts allow wire access in any direction
  • Amperage: 40A - 150A (MIDI fuses sold separately)
  • Optional AMI/MIDI fuses available: BS5251 (40A), BS5253 (60A), BS5255 (80A), BS5258 (150A)
  • Maximum Voltage: 32V DC
  • Terminal Stud Size: 5/16" (M8)
  • Ratings: CE, IP66, ISO 8846, SAE J1171 Marine
  • Size: 5.05" x 1.50" x 1.65" (with clear cover on)
  • Weight: 0.15 lbs
