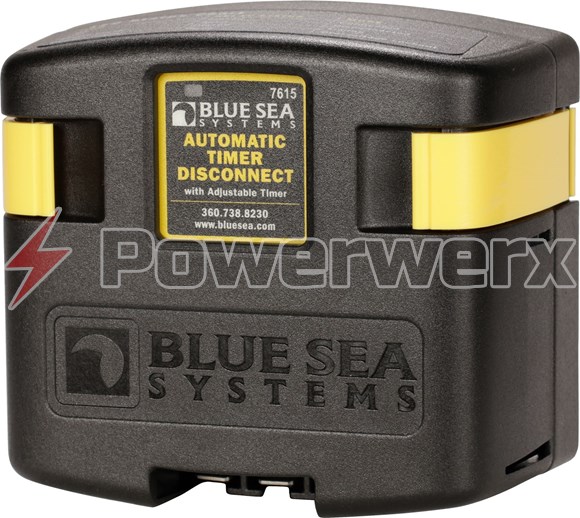

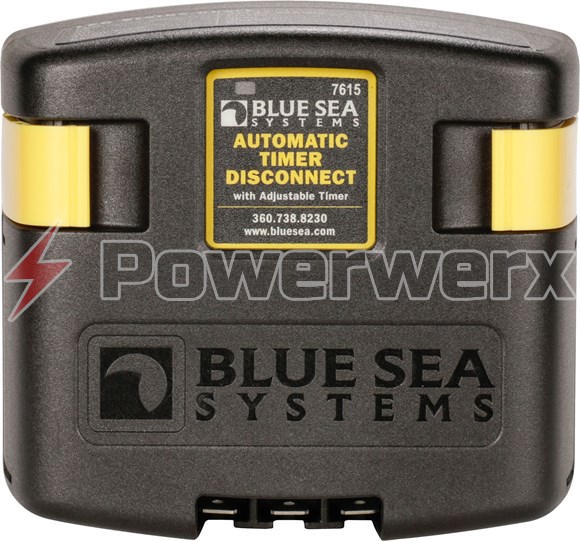

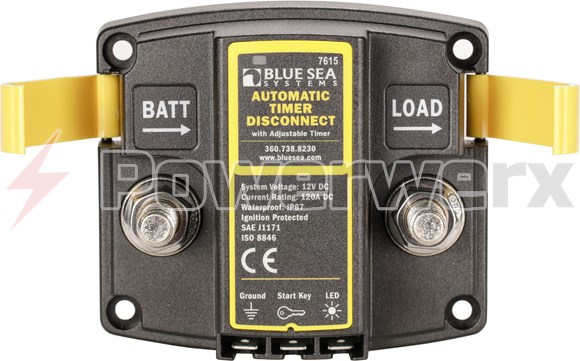

Blue Sea 7615 DC Timer with Low Voltage Disconnect Battery Guard

Can be configured to be used as one of the following battery saving products:

Timer Disconnect

• User Selectable settings: 15 min, 30 min, 1 hour, 1.5 Hours, 2 hours, 4 hours
• 12V signal triggers relay to connect battery power to devices
• When signal is removed the timer is activated and will disconnect devices after a preset time
• Timer ranges from 15 minutes to 4 hours

Low Voltage Disconnect

• User Selectable settings: 11.0V, 11.5V, 12.0V or Off
• Senses low battery voltage and automatically disconnects devices
• Low voltage setting can be used in conjunction with Timer Disconnect. Low voltage will disconnect devices prior to preset time to preserve battery power

Automatic Charging Relay

• Automatically combines two batteries when charging, and isolates them when discharging
• Single side sensing design only monitors the voltage of the start battery
• Ideal for auxiliary batteries that are AGM or significantly larger than the start battery

Solenoid

• 12V signal will connect or disconnect relay without any time delay

Specifications:

• Low Voltage cut out: 10.0V or less
• Over Voltage disconnect: 16.0V or more
• Amps (continuous rating): 120 Amps
• Amps (intermittent rating: 210 Amps (5 min or less)
• Terminal Stud Size: 3/8" - 16
• Amperage Operating Current: 175mA (combined)
• Amperage Operating Current: 4mA (open)
• Size: 3.9"L x 3.5"W x 2.0"H
• Warranty: 5 Years
