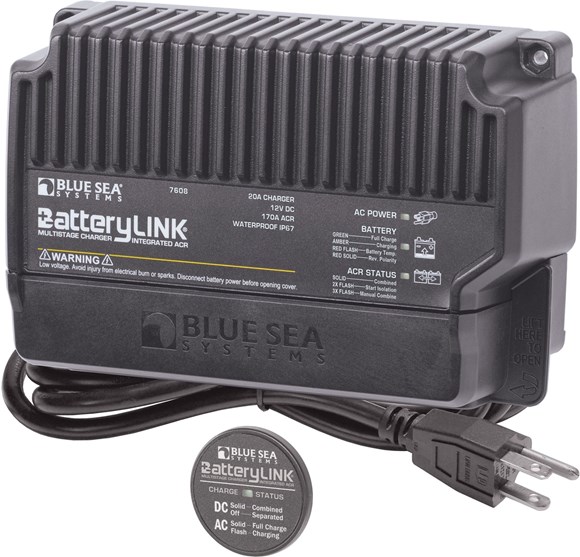

Picture of Blue Sea 7608-BSS BatteryLink Multistage 20A Battery Charger with 170A Integrated ACR
Blue Sea 7608-BSS BatteryLink Multistage 20A Battery Charger with 170A Integrated ACR
  • $351.99
  • In Stock
  • SKU: 7608-BSS

Blue Sea 7608-BSS BatteryLink Multistage 20A Battery Charger with 170A Integrated ACR

Charge two battery banks with shore power or the engine's alternator. Compact 20A multistage battery charger and integrated 170A Automatic Charging Relay (ACR). Allows charging of both battery banks from shore power or alternator then automatically separates battery banks when shore and/or alternator power is off. Read Full Description
$351.99
Availability: In Stock
SKU: 7608-BSS
GTIN: 632085076085

Features:

DC charging away from the dock or garage. Ultra compact 12V/20A 2-Bank Battery Charger, includes remote status display and battery temp sensor. 7608-BSS compact battery charger also includes remote emergency jump start feature which combines two battery banks to start your engine.

Specifications:

  • Voltage: 12 VDC
  • Max Charing Output: 20 Amps
  • Charging Technology: Smart 3-Stage Battery Charging
  • Typical Float Voltage: 13.5 VDC
  • Typical Absorption Voltage: 14.4 VDC
  • Number of Outputs: 2 Positive, 1 Negative
  • ACR Rating: 170A Continuous Rating
  • ACR Combine voltage:13.0 VDC
  • ACR Open Voltage: 12.75 VDC
  • Battery Types: Flooded, AGM, TPPL
  • Universal AC Input: 100-240 VAC, 50/60 Hz, 4A
  • Minimum Cable Size: 6 AWG Positive / 10 AWG Negative
  • Maximum Cable Size: 1/0 AWG
  • Operating Current: 10mA Off, 60mA when charger or engine is ON
  • Dimensions: 8.60" L x 5.65" W x 2.60" H
  • Positive Terminal Stud Size (2): 3/8" – 16 (accepts M6 ring terminals)
  • Negative Terminal Stud Size (1): 1/4" – 20 (accepts M10 ring terminals)
  • Waterproof: IP67 Rated
  • Recommended Minimum Battery Capacity: 100Ah Per Bank
  • Recommended Maximum Battery Capacity: 400Ah Total of Both Banks
  • Included Accessories: Remote LED Indicator, Battery Temp Sensor
  • Weight: 6.75 lbs
