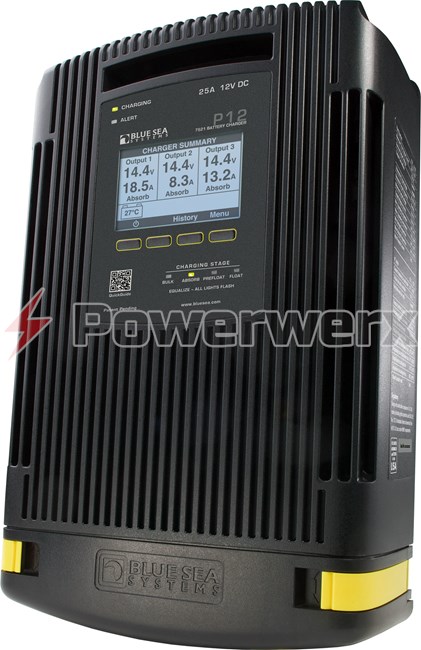

Picture of Blue Sea 7521 P12 Battery Charger Three Bank 12V DC 25A
Blue Sea 7521 P12 Battery Charger Three Bank 12V DC 25A
  • $429.99
  • In Stock
  • SKU: BS7521

Blue Sea 7521 P12 Battery Charger Three Bank 12V DC 25A

Advanced four-stage charging for up to 3 battery banks. Charge profiles for Flooded, Gel, Thin Plate Pure Lead (TPPL), and Absorbed Glass Mat (AGM). Large, bright display with plain language words. Rugged aluminum case. Universal line voltage 90-265V AC. Read Full Description
$429.99
$549.99
Availability: In Stock
SKU: BS7521
GTIN: 632085075217
Designed, assembled, and tested by Blue Sea Systems in Bellingham, Washington
  • Reliability
    • Rugged finned aluminum case dissipates heat to help keep the battery charger electronics cool
    • Universal line voltage 90–265V AC, 45–65 Hz for use anywhere, and is compatible with low voltage power sources
    • AC over and under voltage shut down and automatic restart
  • Ease of use
    • Large bright full graphic control screen with user interface
    • Plain-language text in English, French, Italian, German and Spanish
    • Charge Coordination integrates with Blue Sea Systems Automatic Charging Relays to separate the battery banks while the P12 is operational
  • Support
    • Intuitive diagnostic screens provide a broad range of easily understood fault communications and operating history
    • Industry leading technical support team of engineers
    • 5 year warranty

Features

  • Electrical Performance
    • Universal line voltage 90–265V AC, 45–65 Hz for use anywhere, and is compatible with low voltage power sources
    • AC input range will continue to produce reduced DC output to as low as 75V AC
    • Power factor corrected for efficient charging
  • Advanced Multi-Stage Charging
    • Output for three 12 Volt battery banks
    • Charge profiles for Flooded, Gel, Thin Plate Pure Lead (TPPL), and Absorbed Glass Mat (AGM)
    • A user configurable charge profile is available for other battery types
    • PreFloat stage prevents over charging by individually moving each battery out of the Absorption charging stage, so batteries near full charge do not receive the high constant voltages necessary for other batteries still in the Absorption stage
    • Charge Coordination integrates with up to two Blue Sea Systems Automatic Charging Relays (ACR) to separate the battery banks while the P12 is operational
  • Built In Safety Features
    • Over and under temperature protection for batteries
    • Overheat protection
    • DC over voltage protection
    • DC reverse polarity protection
    • Surge and short circuit protection

Technical Specifications

SpecificationValue
Total Output Current25A
Input AC Current4.5A @ 100V AC
2.25A @ 200V AC
Maximum Output Voltage16.0V DC
Nominal Voltage12V DC
Number of Outputs1 negative
3 positive
Universal AC Input Voltage90-265V AC
AC Input Frequency45-65Hz
Output Voltage Accuracy0.05V
Typical Float Voltage13.5V DC
Minimum Operating Temperature-20° C
Maximum Operating Temperature70° C
Minimum Storage Temperature-30° C
Maximum Storage Temperature80° C
Battery TypesAGM
Flooded Lead Acid
Gel
TPPL (Thin Plate Pure Lead)
Recommended for Battery Bank Sizes330Ah Maximum (Example: 3 x Group 31)
60Ah Minimum (Example: 2 x Group 27)
Warranty5 Year
Height13.03in (330.96 mm)
Width8.46in (214.88 mm)
Depth3.66in (92.96 mm)
Weight13.00lb (5.9 kg)
