Blue Sea 7517 P12 Battery Charger OLED Display, 1-3 battery banks

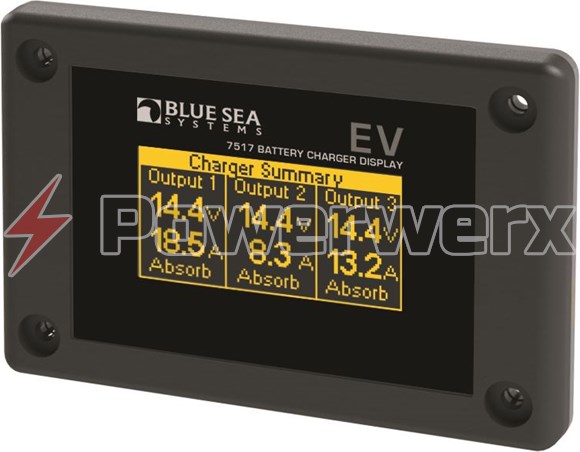

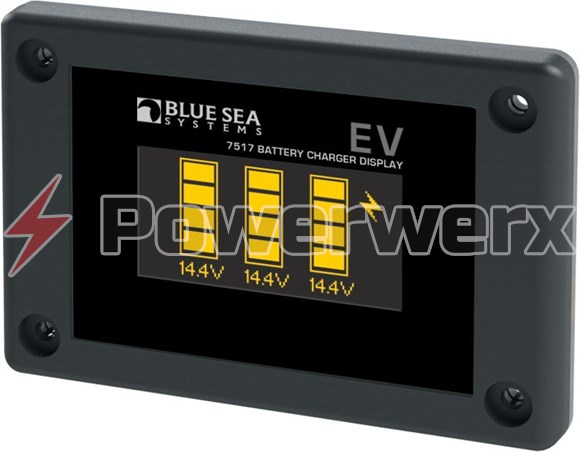

The EV Battery Charger Display provides two options to monitor your battery banks. It can display a graphical representation of voltage for 1 to 3 battery banks with or without connection to a Blue Sea P12 Battery Charger. When connected to a P12 Battery Charger it can display the charger’s Summary screen, displaying voltage, current charging stage, and faults from the charger.

• Bright, daylight readable, OLED display
• Drop in replacement for traditional rectangular displays
• Automatically detects 1-3 battery banks
• AC charge indication verifies that power is connected and the battery charger is charging
• Plain language fault indication relays if there is a fault with the P12 battery charger
• Dip switch selectable screen configuration allows the display to show voltage bar graphs or the P12 Battery Charger summary screen
• Displays voltage bar graphs even when AC power is not present
• Optional standby mode shuts off screen after 4 hours of inactivity
• Automatic ON based on motion with integrated knock sensor
• Usable Voltage Range: 6-36 VDC
• Maximum Current Draw: 50mA
• Minimum Current Draw: 1mA in Standby (sleep) Mode
• IP66 Rated
