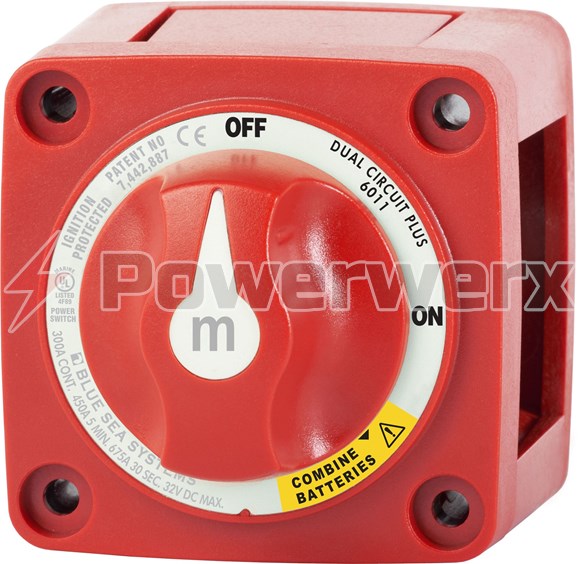

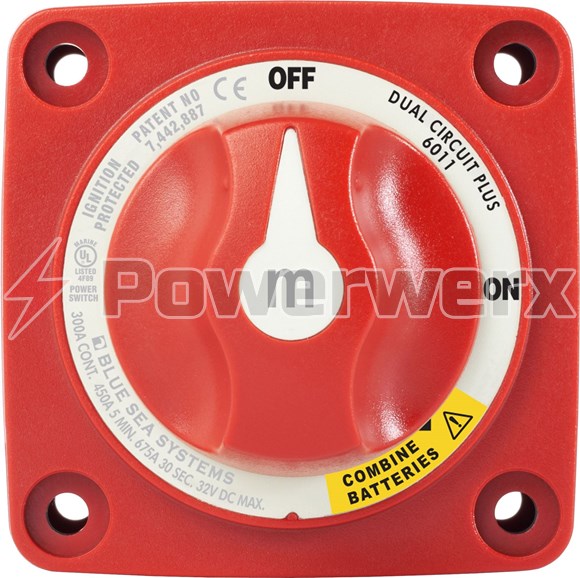

Ideal for marine, RV and emergency vehicle applications. 6011 m-Series (Mini) Battery Switches two isolated battery banks or combines battery banks to all loads. Make before break contact design allows switching between battery banks without power interruption. Manufactured with non-corrosive marine grade metals. Molded in durable reinforced polycarbonate. Tactile textures indicate knob position by feel only. Safe for installation aboard gasoline powered vehicles and boats. Case design allows surface front panel or rear panel mounting. Isolating cover with snap-on sections protects rear contacts 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance accepts 3/8" and M10 ring terminals. 7/8" (22.22mm) stud length to accept multiple cable terminals.
Features:
- Mini Series - Ultra Compact Design
- Dual Battery User Selectable Operation (OFF, ON / Bank 1, Combined battery banks 1+2)
- Safe to use on gas powered vehicles, RV, boats and specialty vehicles
- Can be mounted in engine compartments and marine environments

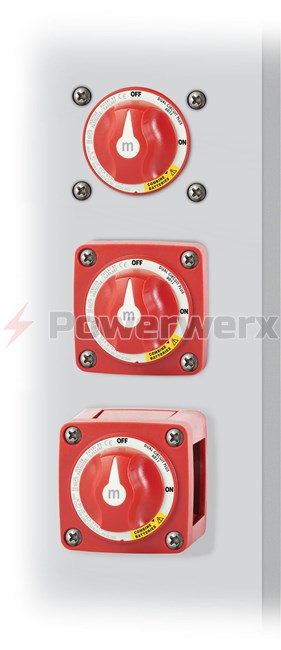

- Case design allows surface, front panel or rear panel mounting
Specifications:
- Amp Rating: 300A Continuous Rating (450A intermittent/5 min)
- Amp Cranking Rating: 675A (up to 30 seconds)
- Switch Type: 3 Position (Dual circuit B1 & B2 OFF, B1 ON, B1 & B2 ON)
- Voltage: 12~32 VDC
- Battery Inputs: 2

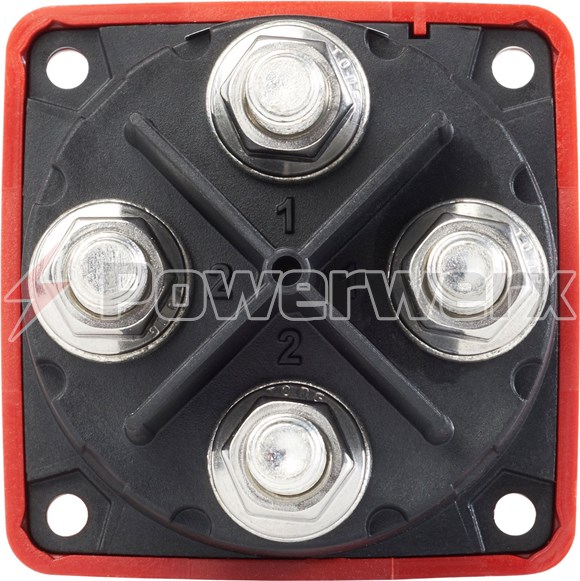

- Terminal Stud Size: 3/8"-16
- Max Cable Size: 4/0 AWG
- Dimensions: 2.95" L x 2.95" W x 3.30" D
- Weight: 0.80 lb
