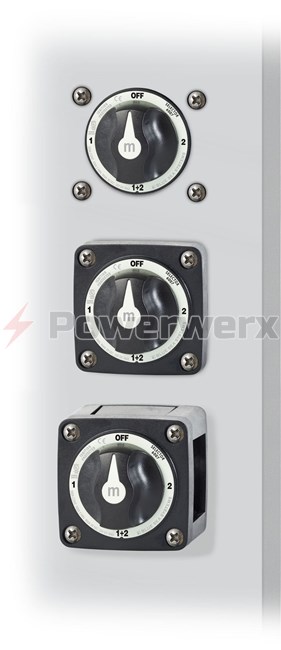

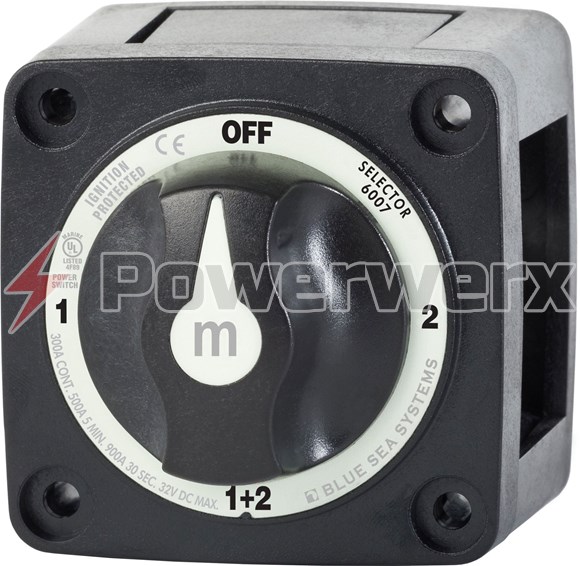

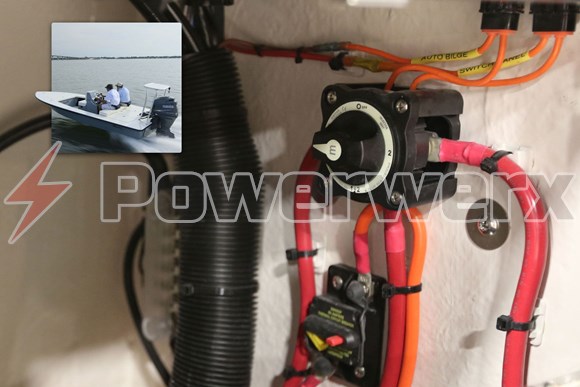

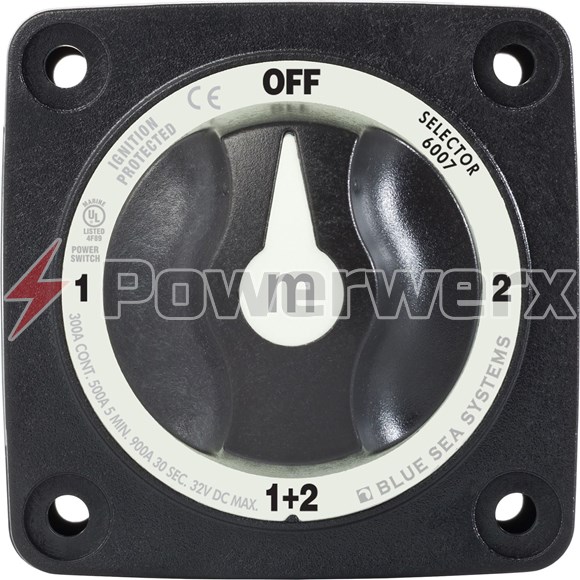

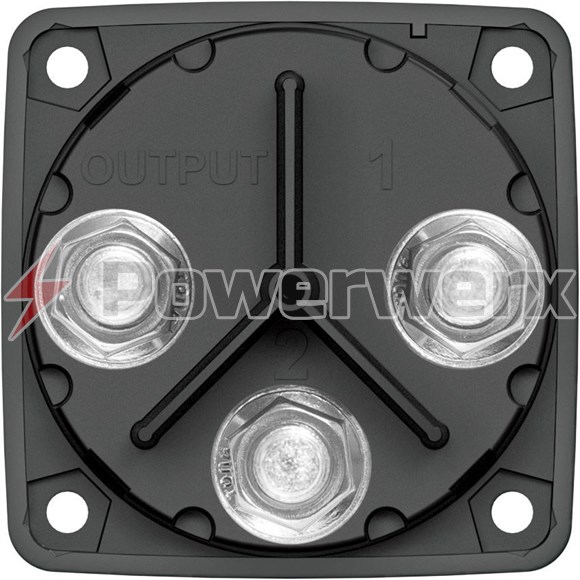

6007200 m-Series (Mini) Battery Switches isolated battery banks to all loads or combines battery banks to all loads. Make before break contact design allows switching between battery banks without power interruption. Ideal for marine, RV and emergency vehicle applications. Manufactured with non-corrosive marine grade metals. Molded in durable reinforced polycarbonate. Tactile textures indicate knob position by feel only. Safe for installation aboard gasoline powered vehicles and boats. Case design allows surface front panel or rear panel mounting. Isolating cover with snap-on sections protects rear contacts 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance accepts 3/8" and M10 ring terminals. 7/8" (22.22mm) stud length to accept multiple cable terminals.
Features:
- Ultra Compact Design
- Dual Battery User Selectable Operation (Battery 1, Battery 2, Battery 1+2 or OFF)
- Safe to use on gas powered vehicles, RV and boats
- Can be mounted in engine compartments and marine environments
Specifications:
- Amp Rating: 300 Continuous Rating (500A intermittent/5 min)
- Amp Cranking Rating: 1500A (up to 10 seconds), 775A (up to 1 min)
- Switch Type: 4 Position (Dual circuit B1 ON, B2 ON, B 1 & 2 ON, OFF)
- Voltage: 12~32 VDC
- Battery Inputs: 2
- Terminal Stud Size: 3/8”-16
- Weight: 0.77 lb
